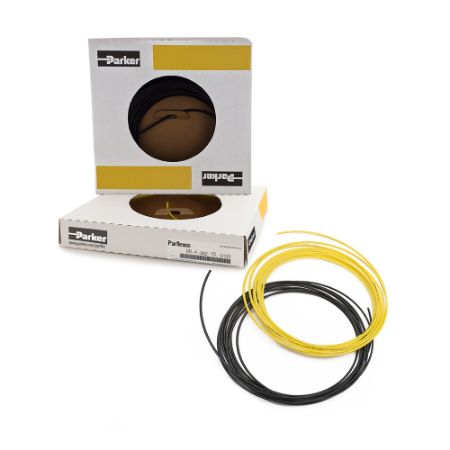

Nylon Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flexible Nylon Tubing uses high-grade polyamide resins for strength and flexibility for routing in tight spaces. It is made from abrasion-resistant, heat and light-stabilized nylon that is available in natural or black tubing. The black tubing is suggested for use in sunlit areas and in close proximity to high ultraviolet (UV) light sources. Nylon plastic tubing exhibits a low-level water absorption and is chemically resistant, making it the optimal solution for machine tool and industrial pneumatic applications, such as robotics, lubrication, petroleum-based chemical transfer and pest control lines. Parflex Nylon Tubing is available in fractional inch and metric sizes.

Markets:
• Robotics< br/>• Automation< br/>• Industrial Pneumatics
• Machine Tool
• Lubrication
• Petroleum based chemical transer
• Pest Control< br/>• Fluid Handling

Features/Benefits:
• Flexible nylon tubing uses high-grade resins for strength and flexibility for routing in tight spaces
• Made from abrasion-resistant, heat and light-stabilized polyamide resin
• Exhibits low-level water absorption
• Chemically resistant tubing

Applications:
• Robotics
• Machine tool
• General pneumatics
• Lubrication
• Petroleum-based chemical transfer
• Pest control lines

Technical Specifications:
• Working and burst pressures rated at 73°F (23°C
• A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur
• The recommended operating temperature range for service at rated pressures with compatible fluids, depending upon conditions, is -54°C to +93°C (-65°F to +200°F)
• Black UV resistant tubing suggested for use in sunlit areas and in close proximity to high ultraviolet light sources
• Select sizes available in 100 ft boxes

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Order Size	Color	Standard Pack Qty (ft)	Color	Minimum Bend Radius	Length per Package	Tube Inside Diameter	Cover Material	Compatible Fitting	Tube Outside Diameter	Media	Weight	Tube Material	Maximum Operating Temperature	Minimum Burst Pressure	Maximum Operating Pressure	Size	Minimum Operating Temperature	Specifications Met
N-2.5-025-BLU	250 in stock	1025 in stock	$0.48/foot	FT	5/32	Blue	250	Blue	12.7 mm	76.2 m	2.7 mm	n/a	NTA®	5/32 inch	Hydraulic Fluids	0.007 kg/m	Polyamide (PA)	200 °F	1200 psi	20.7 bar	-2.5	-54 °C	N/A
N-2.5-025-GRN	Backordered	125 in stock	$0.48/foot	FT	5/32	Green	250	Green	0.5 inch	76.2 m	0.106 inch	n/a	NTA®	5/32 inch	Hydraulic Fluids	0.007 kg/m	Polyamide (PA)	93 °C	1200 psi	20.7 bar	-2.5	-54 °C	N/A
N-2.5-025-RED	Backordered	150 in stock	$0.48/foot	FT	5/32	Red	250	Red	12.7 mm	76.2 m	2.7 mm	n/a	Hi-Duty	5/32 inch	Air	0.005 lb/ft	Polyamide (PA)	200 °F	1200 psi	20.7 bar	-2.5	-54 °C	N/A
N-2.5-025-YEL	71 in stock	98 in stock	$0.48/foot	FT	5/32	Yellow	250	Yellow	12.7 mm	76.2 m	0.106 inch	n/a	Prestolok®	5/32 inch	Lubricants	0.005 lb/ft	Polyamide (PA)	200 °F	1200 psi	300 psi	-2.5	-54 °C	N/A
N-4-035-BLU	Backordered	1781 in stock	$1.03/foot	FT	1/4	Blue	250	Blue	0.88 inch	76.2 m	0.180 inch	n/a	NTA®	1/4 inch	Chemicals	0.011 lb/ft	Polyamide (PA)	93 °C	69 bar	250 psi	-4	-54 °C	N/A
N-4-035-BLU-0100	Backordered	Backordered	$1.35/foot	FT	1/4	Blue	100 ft box	Blue	0.88 inch	100 ft Box	4.6 mm	n/a	Prestolok®	1/4 inch	Water	0.016 kg/m	Polyamide (PA)	93 °C	69 bar	250 psi	-4	-65 °F	N/A
N-4-035-GRN	Backordered	970 in stock	$1.03/foot	FT	1/4	Green	250	Green	0.88 inch	250 ft	0.180 inch	n/a	TrueSeal™	6.4 mm	Mild Chemicals (Pesticides)	0.016 kg/m	Polyamide (PA)	200 °F	1000 psi	17.2 bar	-4	-65 °F	N/A
N-4-035-RED	Backordered	1002 in stock	$1.03/foot	FT	1/4	Red	250	Red	0.88 inch	250 ft	4.6 mm	n/a	Hi-Duty	6.4 mm	Chemicals	0.016 kg/m	Polyamide (PA)	93 °C	69 bar	17.2 bar	-4	-65 °F	N/A
N-4-035-RED-0100	Backordered	Backordered	$1.35/foot	FT	1/4	Red	100 ft box	Red	22.4 mm	34.8 m Box	4.6 mm	n/a	Hi-Duty	6.4 mm	Chemicals	0.011 lb/ft	Polyamide (PA)	93 °C	1000 psi	17.2 bar	-4	-54 °C	N/A
N-4-035-YEL	347 in stock	2768 in stock	$1.03/foot	FT	1/4	Yellow	250	Yellow	22.4 mm	250 ft	4.6 mm	n/a	Compression	1/4 inch	Air	0.016 kg/m	Polyamide (PA)	93 °C	1000 psi	17.2 bar	-4	-65 °F	N/A
N-4-040-BLU	Backordered	Backordered	$1.03/foot	FT	1/4	Blue	250	Blue	22.4 mm	250 ft	0.170 inch	n/a	Compression	6.4 mm	Water	0.018 kg/m	Polyamide (PA)	93 °C	1250 psi	310 psi	-4	-54 °C	N/A
N-4-040-BLU-0100	Backordered	Backordered	$1.35/foot	FT	1/4	Blue	100 ft box	Blue	0.88 inch	30.5 m Box	0.170 inch	n/a	Compress-Align®	1/4 inch	Water	0.012 lb/ft	Polyamide (PA)	93 °C	86.2 bar	21.4 bar	-4	-54 °C	N/A
N-4-040-GRN	Backordered	Backordered	$1.03/foot	FT	1/4	Green	250	Green	22.4 mm	76.2 m	0.170 inch	n/a	Compression	6.4 mm	Water	0.018 kg/m	Polyamide (PA)	93 °C	1250 psi	21.4 bar	-4	-54 °C	N/A
N-4-040-RED	Backordered	650 in stock	$1.03/foot	FT	1/4	Red	250	Red	0.88 inch	250 ft	0.170 inch	n/a	Flow Controls	1/4 inch	Chemicals	0.018 kg/m	Polyamide (PA)	200 °F	1250 psi	21.4 bar	-4	-65 °F	N/A
N-4-040-RED-0100	Backordered	Backordered	$1.35/foot	FT	1/4	Red	100 ft box	Red	0.88 inch	30.5 m Box	4.3 mm	n/a	Flow Controls	6.4 mm	Lubricants	0.018 kg/m	Polyamide (PA)	93 °C	86.2 bar	310 psi	-4	-65 °F	N/A
N-4-040-YEL	Backordered	Backordered	$1.03/foot	FT	1/4	Yellow	250	Yellow	22.4 mm	76.2 m	0.170 inch	n/a	Compress-Align®	1/4 inch	Mild Chemicals (Pesticides)	0.012 lb/ft	Polyamide (PA)	200 °F	86.2 bar	21.4 bar	-4	-54 °C	N/A
N-6-050-BLU	Backordered	265 in stock	$2.01/foot	FT	3/8	Blue	250	Blue	1.13 inch	250 ft	7 mm	n/a	Hi-Duty	9.5 mm	Air	0.023 lb/ft	Polyamide (PA)	200 °F	1000 psi	250 psi	-6	-54 °C	N/A
N-6-050-BLU-0100	Backordered	Backordered	$2.63/foot	FT	3/8	Blue	100 ft box	Blue	1.13 inch	30.5 m Box	7 mm	n/a	Hi-Duty	3/8 inch	Mild Chemicals (Pesticides)	0.034 kg/m	Polyamide (PA)	200 °F	69 bar	17.2 bar	-6	-65 °F	N/A
N-6-050-GRN	54 in stock	Backordered	$2.01/foot	FT	3/8	Green	250	Green	1.13 inch	76.2 m	0.275 inch	n/a	Flow Controls	3/8 inch	Lubricants	0.034 kg/m	Polyamide (PA)	93 °C	69 bar	250 psi	-6	-54 °C	N/A
N-6-050-RED	120 in stock	418 in stock	$2.01/foot	FT	3/8	Red	250	Red	1.13 inch	250 ft	0.275 inch	n/a	Hi-Duty	9.5 mm	Chemicals	0.034 kg/m	Polyamide (PA)	93 °C	69 bar	17.2 bar	-6	-54 °C	N/A
