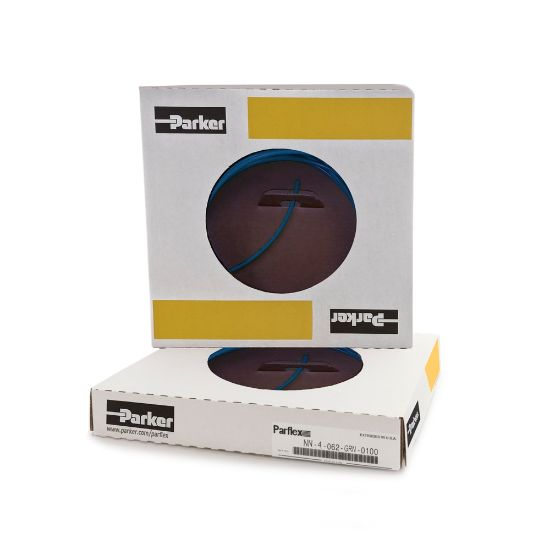

N-4-040-BLU-0100 - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU N-4-040-BLU-0100

$1.35/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Blue
Order Size	1/4	Standard Pack Qty (ft)	100 ft box
Size	-4	Cover Material	n/a
Specifications Met	N/A	Media	Water
Tube Outside Diameter	1/4 inch	Color	Blue
Compatible Fitting	Compress-Align®	Weight	0.012 lb/ft
Tube Material	Polyamide (PA)	Maximum Operating Temperature	93 °C
Minimum Operating Temperature	-54 °C	Length per Package	30.5 m Box
Minimum Bend Radius	0.88 inch	Tube Inside Diameter	0.170 inch
Minimum Burst Pressure	86.2 bar	Maximum Operating Pressure	21.4 bar
