*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

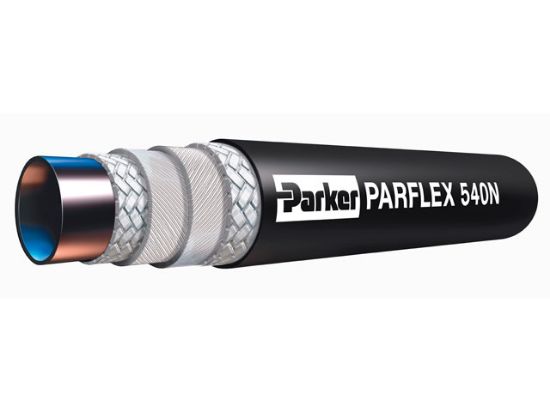

540N-2 - OBSOLETE: General Purpose Hose with Matte Cover - 540N

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	5 in stock

SKU 540N-2

$1.93/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/8
Media	Air	Minimum Operating Temperature	-40
Design Factor	4:1	Maximum Operating Temperature	212
Cover Material	Polyurethane	Compatible Fitting	56 Series
Hose Inner Tube Material	Polyamide (PA)	Hose Reinforcement Material	Fiber
Size	-2	Maximum Operating Pressure	3000
Weight	0.03	Inside Diameter	1/8
Outside Diameter	0.340	Minimum Bend Radius	1/2
Specifications Met	DNG GL	Pkg Qty	250
Pkg Qty/UOM	250 FT	UOM	FT
Working Pressure	3000 PSI (210 bar)	Inner Diameter	0.125 Inch
Material	Thermoplastic	Mating Fitting Series	57
Parker Group	Fluid Connector	Inch/Metric	Inch
Inner Diameter Inch/mm	Inch	Parker Division	Parflex
Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)	Inner Diameter	0.125 Inch
Application	Hydraulic	Hose Pressure Range	Medium
Material	Thermoplastic	Specification	SAE 100R7
Mating Fitting Series	57	Series	540N
