OBSOLETE: MSHA Hydraulic Hose - HTB/HTBR
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

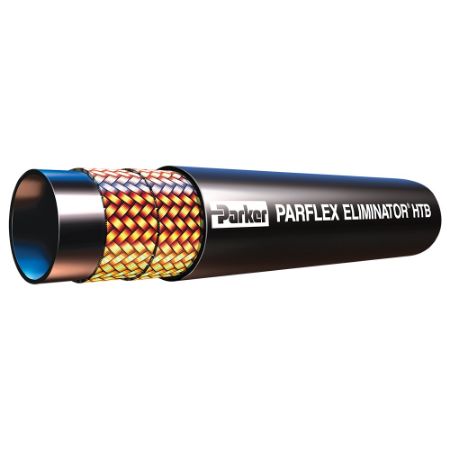

HTB Eliminator® Hydraulic Hose is designed to create four-wire spiral hose performance in a two-wire braid construction, offering superior flexibility and performance for high pressure hydraulic applications. The durable thermoplastic core provides the cleanest fluid conveyance available and a wide range of chemical compatibility. The durable rubber jacket is MSHA approved and UV and ozone resistant.
Markets:
• Mobile Equipment
• Industrial
• Marine
Features/Benefits:
• 3,500 psi to 5,500 psi working pressures
• Up to 40% lighter than comparable rubber hoses
• Combination of high pressure capability, more compact O.D. and low force to flex covers wider range of fluid compatibility and applications
• UV and Ozone resistant cover prevents ozone degradation, cracking, abrasion and moisture ingression
• Compact O.D. and low force to flex covers a wider range of applications while increasing ease of installation
•Low length change under pressure that eliminates delays and does not elongate under pressure
Applications:
• General hydraulic applications
• Lubricating Oils
• Construction Equipment
• Lubricating Oils
• Agriculture Equipment
• Waste Refuse
Certifications/Compliance:
• MSHA Compliant Cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Mobile Equipment
• Industrial
• Marine
Features/Benefits:
• 3,500 psi to 5,500 psi working pressures
• Up to 40% lighter than comparable rubber hoses
• Combination of high pressure capability, more compact O.D. and low force to flex covers wider range of fluid compatibility and applications
• UV and Ozone resistant cover prevents ozone degradation, cracking, abrasion and moisture ingression
• Compact O.D. and low force to flex covers a wider range of applications while increasing ease of installation
•Low length change under pressure that eliminates delays and does not elongate under pressure
Applications:
• General hydraulic applications
• Lubricating Oils
• Construction Equipment
• Lubricating Oils
• Agriculture Equipment
• Waste Refuse
Certifications/Compliance:
• MSHA Compliant Cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Length | Hose I.D. (inch) | Hose Reinforcement Material | Size | Maximum Operating Temperature | Length | Design Factor | Inside Diameter | Minimum Bend Radius | Media | Hose Inner Tube Material | Weight | Compatible Fitting | Minimum Operating Temperature | Specifications Met | Cover Structure | Outside Diameter | Maximum Operating Pressure | Cover Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HTB04-250 | Backordered | Backordered | POR | FT | Obsolete | 1/4 | 2 Braids of High Tensile Wire | -4 | 212 | 250 | 4:1 | 1/4 | 4 | Lubricants (Oils) | Copolyester | 0.27 | HY Series | -40 | MSHA | Smooth | 0.620 | 7000 | Synthetic Rubber | |
| HTBR08-250 | 10 in stock | 23 in stock | POR | FT | 250 ft | 1/2 | 2 Braids of High Tensile Wire | -8 | 212 °F | 250 ft | 4:1 | 1/2 inch | 178 mm | Petroleum Hydraulic Fluids | Copolyester | 0.43 lb/ft | 43 Series | -40 °C | MSHA | Smooth | 0.850 inch | 34.4 MPa | Synthetic Rubber | |
| HTBR16-250 | Backordered | Backordered | POR | FT | 250 ft | 1 | 2 Braids of High Tensile Wire | -16 | 100 °C | 250 ft | 4:1 | 25 mm | 12 inch | Lubricants (Oils) | Copolyester | 1.36 kg/m | 43 Series | -40 °F | MSHA | Smooth | 36.8 mm | 241 bar | Synthetic Rubber |
