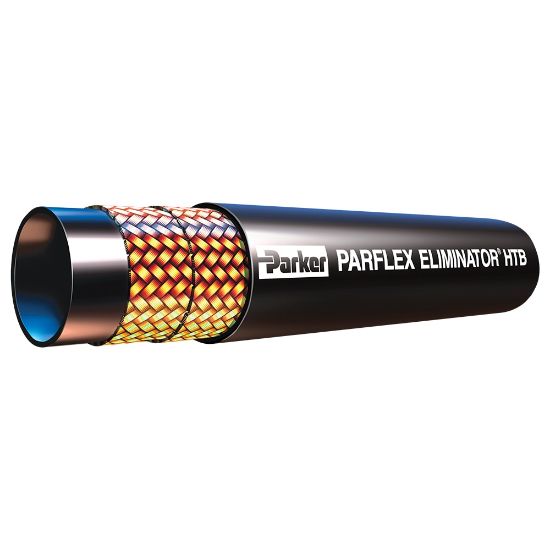

HTB04-250 - OBSOLETE: MSHA Hydraulic Hose - HTB/HTBR

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU HTB04-250

Products specifications

Attribute name	Attribute value
UOM	FT	Length	Obsolete
Hose I.D. (inch)	1/4	Hose Reinforcement Material	2 Braids of High Tensile Wire
Size	-4	Maximum Operating Temperature	212
Length	250	Design Factor	4:1
Inside Diameter	1/4	Minimum Bend Radius	4
Media	Lubricants (Oils)	Hose Inner Tube Material	Copolyester
Weight	0.27	Compatible Fitting	HY Series
Minimum Operating Temperature	-40	Specifications Met	MSHA
Cover Structure	Smooth	Outside Diameter	0.620
Maximum Operating Pressure	7000	Cover Material	Synthetic Rubber
