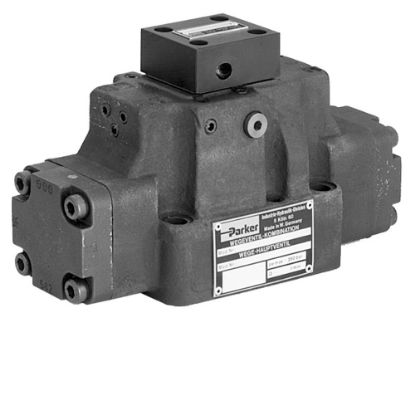

Oil Operated Directional Control Valve - D8P Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D8P directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Low pressure drop design
• Hardened spools provide long life

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Mounting Type	Maximum Operating Pressure	Size	Maximum Flow Rate	Seal Material	Maximum Operating Pressure	Minimum Operating Temperature	Actuation Type	Maximum Flow Rate	Maximum Operating Temperature	Valve Type	Options	Body Material	Spool Position	Spool Code	Size	Weight	Mounting Type
D8P11C2N7	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool	Nitrile	5000	-4	Hydraulic Pressure	160	+140	Oil Operated Directional Control Valve	Pilot Choke - Meter out	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold
D8P1C2N	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool	Nitrile	5000	-4	Hydraulic Pressure	160	+140	Oil Operated Directional Control Valve	n/a	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Blocked	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold
D8P1C2N8	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool	Nitrile	5000	-4	Hydraulic Pressure	160	+140	Oil Operated Directional Control Valve	Stroke Adj. 'B' End	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Blocked	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold
D8P20B5V	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool	Fluorocarbon	5000	-4	Hydraulic Pressure	160	+140	Oil Operated Directional Control Valve	n/a	Grey Iron	Single Operator, 2 position, spring offset. P to A and B to T in offset position	4-Way, 2 Position, Closed Crossover	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold
D8P2C2N	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool	Nitrile	5000	-4	Hydraulic Pressure	160	+140	Oil Operated Directional Control Valve	n/a	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold
D8P2C2V	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool	Fluorocarbon	5000	-4	Hydraulic Pressure	160	+140	Oil Operated Directional Control Valve	n/a	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold
D8P4C2V	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool	Fluorocarbon	5000	-4	Hydraulic Pressure	160	+140	Oil Operated Directional Control Valve	n/a	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P Port Blocked	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold
D8P9C2N	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool	Nitrile	5000	-4	Hydraulic Pressure	80	+140	Oil Operated Directional Control Valve	n/a	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P to T; A & B Blocked; Open Crossover	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold
