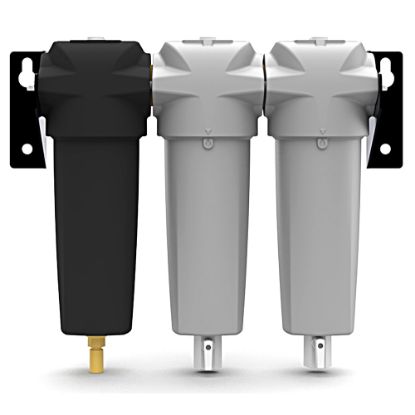

OIL-X Filters For Railway and Transportation Applications
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Safety is paramount in transportation applications; no compromise is given when ensuring protection against contamination dangers in compressed air systems. The elimination of these threats not only provides peace of mind but also allows for the reduction of unplanned maintenance and breakdowns as compressed air contamination hazards are continuously removed and the system is protected.
A reliable supply of clean and dry compressed air is an essential requirement within the rail and transportation sector. Compressed air is used in applications such as pneumatic braking systems, pantograph operation, air suspension, door operation and track maintenance.
Parker’s OIL-X filters deliver unmatched contamination removal performance and maintain the safety, efficiency, and integrity within the compressed air system.
Benefits
• Delivered air quality in accordance with ISO8573- 1:2010, the international standard for compressed air quality.
• Reduce unplanned maintenance and set service costs.
• Low operational costs suitable for all compressor types.
• Filters are covered by a one-year compressed air quality guarantee which is automatically renewed with annual maintenance.
• Peace of mind.
• Continued protection of downstream equipment and applications.
• Coalescing filters performance tested to the stringent requirements of ISO12500-1.
• Dust removal filters tested in accordance with the test methods of the ISO8573 Series.
• Pressure losses start low and stay low, saving energy.
• All filter housings are covered by a 10-year housing guarantee.
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
Read More...A reliable supply of clean and dry compressed air is an essential requirement within the rail and transportation sector. Compressed air is used in applications such as pneumatic braking systems, pantograph operation, air suspension, door operation and track maintenance.
Parker’s OIL-X filters deliver unmatched contamination removal performance and maintain the safety, efficiency, and integrity within the compressed air system.
Benefits
• Delivered air quality in accordance with ISO8573- 1:2010, the international standard for compressed air quality.
• Reduce unplanned maintenance and set service costs.
• Low operational costs suitable for all compressor types.
• Filters are covered by a one-year compressed air quality guarantee which is automatically renewed with annual maintenance.
• Peace of mind.
• Continued protection of downstream equipment and applications.
• Coalescing filters performance tested to the stringent requirements of ISO12500-1.
• Dust removal filters tested in accordance with the test methods of the ISO8573 Series.
• Pressure losses start low and stay low, saving energy.
• All filter housings are covered by a 10-year housing guarantee.
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
| Action | SKU | Availability | Partner Available | Price | UOM | Port Size | Maximum Flow Rate | Drain | Connection Type | Compatible Element | Electrical Requirements | Drain Option | Industry | Weight | Depth | Height | Operating Pressure | Micron Rating | Materials of Construction | Specifications Met | Pressure Differential |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WSPX015BGFX | Backordered | Backordered | $391.04/each | EA | ⅜" | 144 m³/h @ 7 barg (85 cfm @ 102 psig) | Float | BSPP | N/A | N/A | Automatic Float | Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental | 3.10 lb | 84.0 mm | 9.37 inch | 1.5 to 16 barg | n/a | Die Cast Aluminium | Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II | 0.9 psi Initial Saturated, 100% Flow | |
| WSPX015CGFX | Backordered | Backordered | $391.04/each | EA | ½" | 144 m³/h @ 7 barg (85 cfm @ 102 psig) | Float | BSPP | N/A | N/A | Automatic Float | Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental | 1.41 kg | 3.31 inch | 238.0 mm | 1.5 to 16 barg | n/a | Die Cast Aluminium | Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II | 55.0 mbar Initial Saturated, 100% Flow | |
| WSPX025EGFX | Backordered | Backordered | $622.28/each | EA | 1" | 396 m³/h @ 7 barg (233 cfm @ 102 psig) | Float | BSPP | N/A | N/A | Automatic Float | Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental | 5.86 lb | 115.0 mm | 10.91 inch | 22 to 232 psig | n/a | Die Cast Aluminium | Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II | 1.4 psi Initial Saturated, 100% Flow | |
| WSPX035GGFX | Backordered | Backordered | $939.06/each | EA | 1½" | 1260 m³/h @ 7 barg (742 cfm @ 102 psig) | Float | BSPP | N/A | N/A | Automatic Float | Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental | 6.87 kg | 6.18 inch | 17.32 inch | 22 to 232 psig | n/a | Die Cast Aluminium | Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II | 0.8 psi Initial Saturated, 100% Flow |
