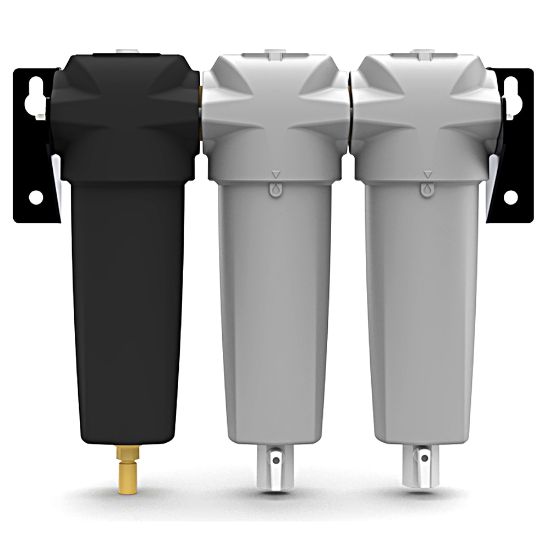

WSPX015CGFX - OIL-X Filters For Railway and Transportation Applications

Compressed air filters shock and vibration tested to BS EN 60068-2 27:2009, IEC 60068-264:2019.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU WSPX015CGFX

$391.04/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	144 m³/h @ 7 barg (85 cfm @ 102 psig)
Connection Type	BSPP	Drain	Float
Compatible Element	N/A	Electrical Requirements	N/A
Drain Option	Automatic Float	Port Size	½"
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Materials of Construction	Die Cast Aluminium
Weight	1.41 kg	Micron Rating	n/a
Operating Pressure	1.5 to 16 barg	Pressure Differential	55.0 mbar Initial Saturated, 100% Flow
Depth	3.31 inch	Height	238.0 mm
Specifications Met	Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II

Product resources

Literature and Reference Materials

Product Information Sheet - OIL-X Railway and Transportation Filters - (English) (PDF)
