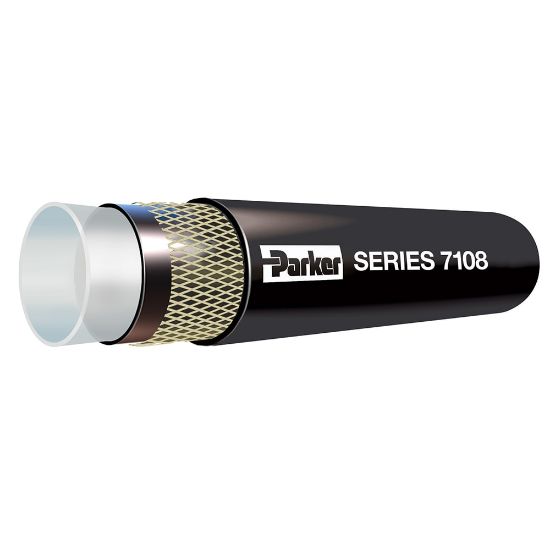

Picture of Paint Fluid Hose, Series 7108 - 7108-251

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Paint Fluid Hose, Series 7108 - 7108-251

Paint fluid hose is designed for transfer of high aromatic content products such as ketone solvents, lacquers, paint thinners, oil-based and water-based paints and many common chemicals used in applications to 200°F and 750 psi, Series 7108
Availability:
Backordered
SKU 7108-251
$3.66
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1/4
Maximum Working Pressure (psi)500DivisionHose Products Division
ApplicationChemical TransferWeight0.13 kg/m
Specifications MetN/AMinimum Operating Temperature0 °F
Length per Package500 ftHose Inner Tube MaterialPolyamide (PA)
Maximum Operating Pressure500 psiCover ColorBlack
Minimum Bend Radius76.2 mmMaximum Operating Temperature93 °C
Cover StructureSmoothInside Diameter6.4 mm
Package TypeReelOutside Diameter0.490 inch
Cover MaterialChloroprene Rubber (CR)Compatible FittingHY Series
Hose Reinforcement Material2 Plies of AramidMediaChemicals (Lacquers)
