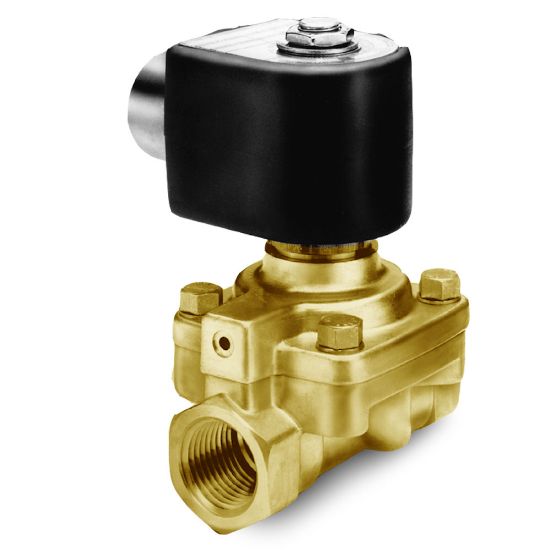

Picture of Parker 2-Way Normally Closed, 2" NPT General Purpose Solenoid Valves - 7321GBN99N00N0C111C2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Closed, 2" NPT General Purpose Solenoid Valves - 7321GBN99N00N0C111C2

Parker 2-Way Normally Closed, 2" NPT Solenoid Valves provide pressures up to 230 PSI and flow factors of 38.6 CV's. They have brass bodies, multiple mounting positions and Class F or H and NEMA 4X, 7 or 9 coils for general purpose flow applications.
Availability:
Backordered
SKU 7321GBN99N00N0C111C2
$1,038.18
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)24 VDCMaximum Pressure Differential (psi)200 psi (DC)
Power (Watts)10 Watt (DC)Port TypeNPT
Body MaterialBrassPort Size2 inch
DivisionFluid Control DivisionMediaLiquids and Gases
FunctionNormally Closed (NC)Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type2-WayInput Voltage24.0 VDC
Seal MaterialNBROrifice 2 Sizen/a
Number of Ports2Flow Coefficient 2n/a
Coil Specifications MetNEMA 4XMinimum Fluid Temperature0 °F
Minimum Pressure Differential5 psiMaximum Fluid Temperature185 °F
Maximum Pressure Differential200 psi (DC)Product Series7000 Series
Power Consumption10 W (DC)Actuation TypePilot
Orifice 1 Size1-9/16 inchFlow Coefficient 138.6 Cv
