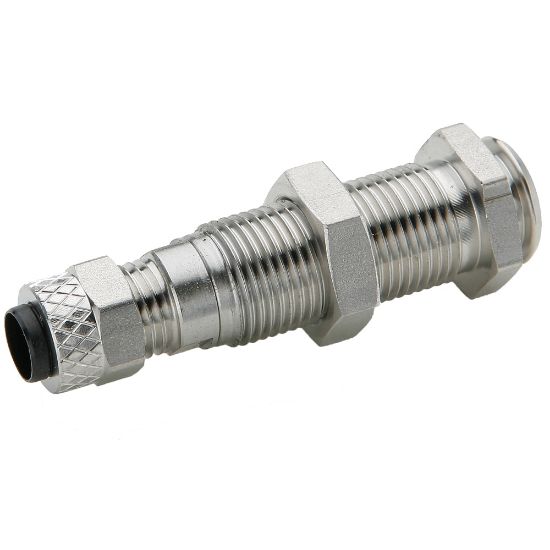

Picture of Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite - 392PSS-4-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite - 392PSS-4-4

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.
Availability:
Backordered
SKU 392PSS-4-4
$474.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody Material316 Stainless Steel
Connection 2 Thread Size (inch)naConnection 2 Tube O.D. (inch)na
Connection 1 StyleCompressionConnection 1 Tube O.D. (inch)1/4
ShapeBulkhead BodyStyleTube to Plug-in stem
Connection 2 StylePlug-in StemConnection 2 Insert Diameter (inch)1/4
DivisionFluid System Connectors DivisionBody MaterialStainless Steel
Maximum Operating Temperature150 °FO-Ring MaterialFluorocarbon
Maximum Operating Pressure10 barMinimum Operating Temperature-17 °C
Tube MaterialPolyethylene, Nylon, Polypropylene, VinylDimensional Weight2.7594424460431655 lb
ApplicationDental, Packaging, Laboratory, Car washNut Material316 Stainless Steel
Sleeve MaterialAcetal Copolymer
