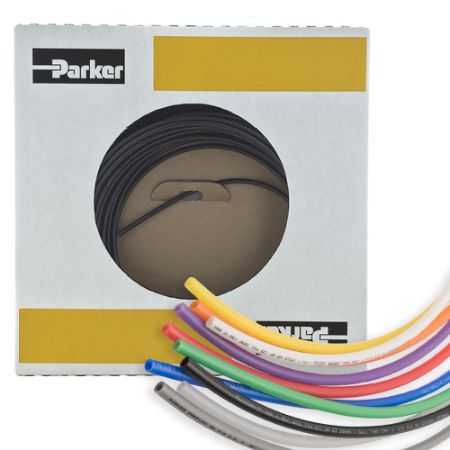

PE Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PE tubing is produced from a high molecular weight resin to provide increased dimensional stability, uniformity and long-term strength. Parker PE tubing meets the FDA and NSF-51 requirements for food contact applications and NSF-61 for potable water.

The tubing may be used in general-purpose instrument applications as well as all food handling applications except holding food during cooking. The black tubing, EB series, contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high, ultraviolet light sources.
Standard black is not approved for food handling applications, but NSF-listed and FDA-compliant black can be ordered on special request. A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur.

Markets
• Water Market
• Food & Beverage
• Fluid Handling
• Industrial Pneumatics
• Chemical transfer

Features
• Made from 100% virgin resin material for long term strength
• ASTM D-1693 (10% IGEPAL) For excellent stress crack resistance maximizes the service life
• UV stabilized to reduce fading, cracking and loss of strength from sunlight
• Meets FDA, NSF-51 requirements for food contact applications and NSF-61 for potable water

Applications:
• Potable water
• Beverage dispensers
• Chemical transfer
• Low pressure pneumatics

Certifications/Compliance:
• FDA compliant for food contact
• ASTM D-1693 (10% IGEPAL) for stress crack resistance
• ASTM D-1248, Type I, Class A, Category 4, Grade E5
• NSF – 51
• NSF – 61

Notes:
• Qualified with fittings from Parker Fluid System Connectors Division (See PFD Catalog CAT. 4660 or FSC Catalog CAT3501E USA for specific fittings)
• Black (EB) tubing contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high ultraviolet light source
• A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure
• Wall thickness is for reference only

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Color	Product Type	Nominal Outside Diameter	Standard Pack Qty (ft)	Cover Material	Color	Cover Color	Compatible Fitting	Minimum Operating Temperature	Specifications Met	Minimum Bend Radius	Size	Tube Material	Length per Package	Tube Inside Diameter	Maximum Operating Pressure	Weight	Tube Outside Diameter	Media	Minimum Burst Pressure	Maximum Operating Temperature
E-108-0100	100 in stock	1690 in stock	$1.36/foot	FT	Natural	Fractional, Instr. Grade	5/8 inch	100	n/a	Natural	n/a	Flow Controls	-80 °F	ASTM D1248	101.6 mm	5/8 inch	Polyethylene (PE)	30 m	0.5 inch	0.48 MPa	0.065 kg/m	5/8 inch	Air	19.3 bar	66 °C
E-10X1.5-0100	50 in stock	100 in stock	$0.74/foot	FT	Natural	Metric, Instr. Grade	10 mm	100	n/a	Natural	n/a	Prestomatic	-80 °F	ASTM D1693	38 mm	10 mm	Polyethylene (PE)	30 m	7 mm	8.6 bar	0.026 lb/ft	0.394 inch	Water	34.5 bar	66 °C
E-12X1.5-0100	227 in stock	390 in stock	$0.96/foot	FT	Natural	Metric, Instr. Grade	12 mm	100	n/a	Natural		Prestolok®	-62 °C	ASTM D1693	2-1/2 inch	12 mm	Polyethylene (PE)	30 m	0.354 inch	6.2 bar	0.048 kg/m	0.472 inch	Water	400 psi	150 °F
E-43-0100	1447 in stock	24997 in stock	$0.35/foot	FT	Natural	Fractional, Instr. Grade	1/4 inch	100 ft box	n/a	Natural	n/a	Liquifit	-62 °C	ASTM D1248	25 mm	1/4 inch	Polyethylene (PE)	30 m Box	0.17 inch	120 psi	0.011 lb/ft	1/4 inch	Water	480 psi	150 °F
E-43-0500	3250 in stock	20475 in stock	$0.29/foot	FT	Natural	Fractional, Instr. Grade	1/4 inch	500	n/a	Natural	n/a	Flow Controls	-62 °C	NSF 61	1 inch	1/4 inch	Polyethylene (PE)	152 m	4.3 mm	0.83 MPa	0.011 lb/ft	6.4 mm	Water	480 psi	66 °C
E-43-1000	2000 in stock	11182 in stock	$0.27/foot	FT	Natural	Fractional, Instr. Grade	1/4 inch	1000	n/a	Natural	n/a	Poly-Tite	-80 °F	FDA 21 CFR 177	1 inch	1/4 inch	Polyethylene (PE)	305.0 m	0.17 inch	0.83 MPa	0.16 kg/m	6.4 mm	Air	33.1 bar	150 °F
E-43-B-0100	96 in stock	4108 in stock	$0.35/foot	FT	Blue	Fractional, Instr. Grade	1/4 inch	100 ft box	n/a	Blue	n/a	Dubl-Barb®	-80 °F	ASTM D1693	1 inch	1/4 inch	Polyethylene (PE)	100 ft	0.17 inch	8.3 bar	0.011 lb/ft	1/4 inch	Water	480 psi	150 °F
E-43-B-0500	433 in stock	8142 in stock	$0.29/foot	FT	Blue	Fractional, Instr. Grade	1/4 inch	500	n/a	Blue	n/a	Liquifit	-62 °C	NSF 61	25 mm	1/4 inch	Polyethylene (PE)	500 ft	4.3 mm	8.3 bar	0.16 kg/m	6.4 mm	Water	480 psi	150 °F
E-43-B-1000	Backordered	600 in stock	$0.27/foot	FT	Blue	Fractional, Instr. Grade	1/4 inch	1000	n/a	Blue	n/a	Fast & Tite®	-62 °C	ASTM D1248	25 mm	1/4 inch	Polyethylene (PE)	305.0 m	0.17 inch	8.3 bar	0.16 kg/m	6.4 mm	Air	480 psi	150 °F
E-43-G-0500	627 in stock	535 in stock	$0.29/foot	FT	Green	Fractional, Instr. Grade	1/4 inch	500	n/a	Green	n/a	Flow Controls	-80 °F	ASTM D1248	1 inch	1/4 inch	Polyethylene (PE)	152 m	4.3 mm	120 psi	0.011 lb/ft	6.4 mm	Water (Potable Water)	33.1 bar	150 °F
E-43-GRA-0500	Backordered	2000 in stock	$0.35/foot	FT	Gray	Fractional, Instr. Grade	1/4 inch	500	n/a	Gray	n/a	TrueSeal™	-80 °F	NSF 61	25 mm	1/4 inch	Polyethylene (PE)	152 m	0.17 inch	8.3 bar	0.011 lb/ft	1/4 inch	Water	480 psi	150 °F
E-43-O-0500	64 in stock	2854 in stock	$0.42/foot	FT	Orange	Fractional, Instr. Grade	1/4 inch	500	n/a	Orange	n/a	Compress-Align®	-62 °C	NSF 61	25 mm	1/4 inch	Polyethylene (PE)	152 m	0.17 inch	120 psi	0.16 kg/m	6.4 mm	Water	480 psi	150 °F
E-43-P-0500	492 in stock	609 in stock	$0.35/foot	FT	Purple	Fractional, Instr. Grade	1/4 inch	500	n/a	Purple	n/a	TrueSeal™	-62 °C	ASTM D1693	25 mm	1/4 inch	Polyethylene (PE)	500 ft	0.17 inch	8.3 bar	0.16 kg/m	6.4 mm	Water	480 psi	150 °F
E-43-R-0500	50 in stock	4708 in stock	$0.29/foot	FT	Red	Fractional, Instr. Grade	1/4 inch	500	n/a	Red	n/a	Liquifit	-62 °C	NSF 51	1 inch	1/4 inch	Polyethylene (PE)	500 ft	4.3 mm	120 psi	0.011 lb/ft	6.4 mm	Water (Potable Water)	33.1 bar	66 °C
E-43-WHT-0500	Backordered	873 in stock	$0.35/foot	FT	White	Fractional, Instr. Grade	1/4 inch	500	n/a	White	n/a	Poly-Tite	-80 °F	NSF 61	25 mm	1/4 inch	Polyethylene (PE)	152 m	4.3 mm	8.3 bar	0.011 lb/ft	6.4 mm	Water (Potable Water)	480 psi	150 °F
E-43-Y-0500	139 in stock	19718 in stock	$0.29/foot	FT	Yellow	Fractional, Instr. Grade	1/4 inch	500	n/a	Yellow	n/a	Prestolok®	-62 °C	NSF 61	25 mm	1/4 inch	Polyethylene (PE)	500 ft	4.3 mm	120 psi	0.011 lb/ft	6.4 mm	Air	480 psi	150 °F
E-53-0500	Backordered	5211 in stock	$0.46/foot	FT	Natural	Fractional, Instr. Grade	5/16 inch	500	n/a	Natural	n/a	Prestolok®	-80 °F	NSF 51	1.13 inch	5/16 inch	Polyethylene (PE)	500 ft	0.187 inch	0.100 MPa	0.030 kg/m	7.9 mm	Water (Potable Water)	580 psi	66 °C
E-64-0100	626 in stock	30714 in stock	$0.59/foot	FT	Natural	Fractional, Instr. Grade	3/8 inch	100 ft box	n/a	Natural	n/a	Liquifit	-80 °F	NSF 51	31.8 mm	3/8 inch	Polyethylene (PE)	100 ft Box	0.25 inch	125 psi	0.037 kg/m	3/8 inch	Water	34.5 bar	150 °F
E-64-0500	3500 in stock	21880 in stock	$0.52/foot	FT	Natural	Fractional, Instr. Grade	3/8 inch	500	n/a	Natural	n/a	Prestomatic	-80 °F	FDA	1-1/4 inch	3/8 inch	Polyethylene (PE)	152 m	6.4 mm	8.6 bar	0.025 lb/ft	9.5 mm	Air	500 psi	66 °C
E-64-1000	Backordered	27963 in stock	$0.51/foot	FT	Natural	Fractional, Instr. Grade	3/8 inch	1000	n/a	Natural	n/a	SAE Cartridges	-80 °F	FDA 21 CFR 177	1-1/4 inch	3/8 inch	Polyethylene (PE)	305.0 m	0.25 inch	125 psi	0.025 lb/ft	9.5 mm	Air	500 psi	150 °F
