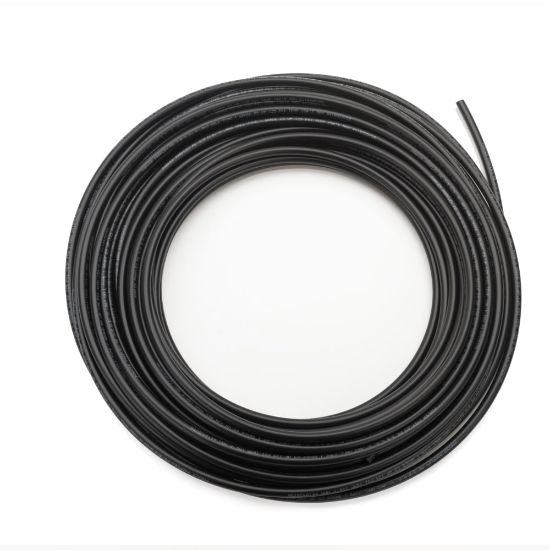

E-10X1.5-0100 - PE Tubing

Name: E-10X1.5-0100 - PE Tubing
SKU: E-10X1.5-0100
Price: 0.74 USD
Availability: InStock

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Availability:

50 in stock

Peoria, IL

Partner Available:

100 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU E-10X1.5-0100

$0.74/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	100
Nominal Outside Diameter	10 mm	Product Type	Metric, Instr. Grade
Color	Natural	Maximum Operating Temperature	66 °C
Tube Material	Polyethylene (PE)	Weight	0.026 lb/ft
Length per Package	30 m	Maximum Operating Pressure	8.6 bar
Size	10 mm	Specifications Met	ASTM D1693
Color	Natural	Tube Outside Diameter	0.394 inch
Media	Water	Cover Material	n/a
Minimum Bend Radius	38 mm	Tube Inside Diameter	7 mm
Cover Color	n/a	Minimum Operating Temperature	-80 °F
Compatible Fitting	Prestomatic	Minimum Burst Pressure	34.5 bar

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
