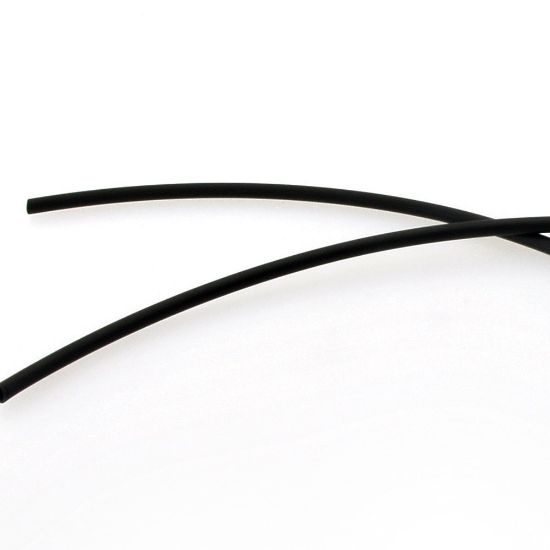

PEFR-8-0250 - PE Tubing - Flame Resistant

Spark resistant PEFR Series PE Tubing is flame resistant (UL 94 V-2) and excellent for pneumatic controls in HVAC applications. Resistant to stress cracking exceeds that of ordinary polyethylene tubing.
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:2000 in stock
SKU PEFR-8-0250
$1.01/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Parker's PEFR Series Tubing features exceptional flame, spark and stress crack resistance. It is designed for use in industrial pneumatic markets for purposes that involve weld spatter and spark environments and pneumatic controls in HVAC applications. Its resistance to environmental stress cracking exceeds that of ordinary polyethylene tubing, as measured by ASTM D-1693 (10% IGEPAL). Utilizing PEFR Series Tubing for industrial applications in spark and weld-spatter environments will allow for successful and safe system operation without hose damage or stress cracking. For more product information, download the literature listed on the Product Support tab.

Features:

  • Excellent stress crack resistance for high performance in weld spatter and spark environments

    Applications:

  • Pneumatic controls in HVAC applications
  • Weld spatter/spark environments

    Certifications/Compliance:

  • UL 94 V-2
  • ASTM D-1693 (10% IGEPAL) for stress crack resistance

    Technical Specifications:

  • Extruded from flame resistant linear low-density polyethylene (LLDPE)
  • Working and burst pressures rated at 73°F (23°C)
  • The wall thickness is for reference only
  • For tube support use, reference Catalog 4660 Tubing/Fitting Compatibility Chart

    • Markets:

    Industrial Pneumatics | HVAC
    Products specifications
    Attribute nameAttribute value
    UOMFTTube O.D. (inch)1/2
    Standard Pack Qty (ft)250MediaAir
    Cover Materialn/aSize-8
    Length per Package500 ftTube Outside Diameter1/2 inch
    ColorBlackCompatible FittingCompression
    Minimum Burst Pressure400 psiMaximum Operating Pressure100 psi
    Tube Inside Diameter0.375 inchMinimum Bend Radius1-3/4 inch
    Maximum Operating Temperature66 °CWeight0.61 kg/m
    Tube MaterialPolyethylene (PE) (Flame Resistant)Specifications MetUL 94 V-2
    Minimum Operating Temperature-65 °CWall Thickness0.062 Inch 1.6 MM
    Max. Operating Temperature66 °C 150 °FLength500 ft 152 M
    Min. Bend Radius1 3/4 Inch 39.1 MMInside Diameter0.375 Inch 9.5 MM
    Outside Diameter1/2 Inch 12.7 MMMediaAir
    Min. Operating Temperature-85 °F -65 °CMax. Operating Pressure0.7 MPa 6.9 Bar 100 psi
    Weight0.41 LB/ftMin. Burst Pressure400 psi 27.6 Bar 2.76 MPa
    Parker DivisionTubingParker GroupFluid Connector
    ColorBlack
