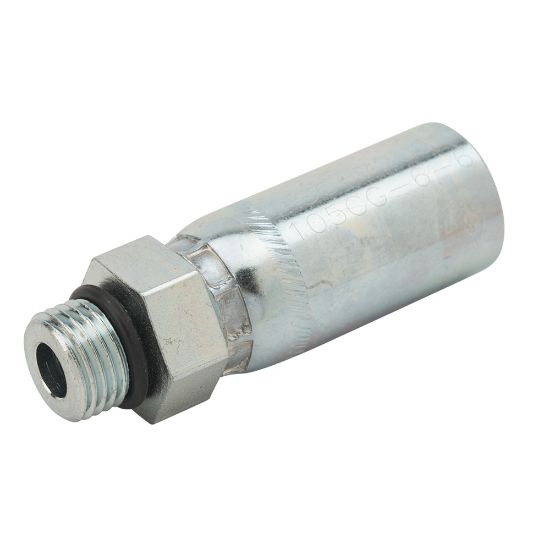

105CG-4-3 - Permanent Crimp Fittings - CG Series Fittings

Parker CG Series permanent crimp fittings are used on Parflex hoses and replace Parflex 55, 57, 58 and 58H Series fittings.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 105CG-4-3

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.188"	Connection Thread Size	7/16"-20
Product Style	Male SAE Straight Thread with O-ring - Rigid - Straight	Shape	Straight
Materials of Construction	Steel	Port Size	1/4 inch
Length	1.98 inch	Connection Type	SAE

Product resources

Compliance, Certifications & Safety

Parflex Division SDS (PDF)
Parflex Division EPA 6h Regulation (PDF)
Parflex Division RoHS Certificate / WEEE Certificate Directive (PDF)
Parker Division Proposition 65 Warning Language--Required_Prop_65_Warning (PDF)
Parflex Division REACH Compliance (PDF)
Parflex Division Manufacturers Directive (PDF)

Literature and Reference Materials

Catalog 4660 Parflex Thermoplastic & Fluoropolymer Hose and Tubing--CAT-4660 (PDF)
Parker Offer of Sale (PDF)
