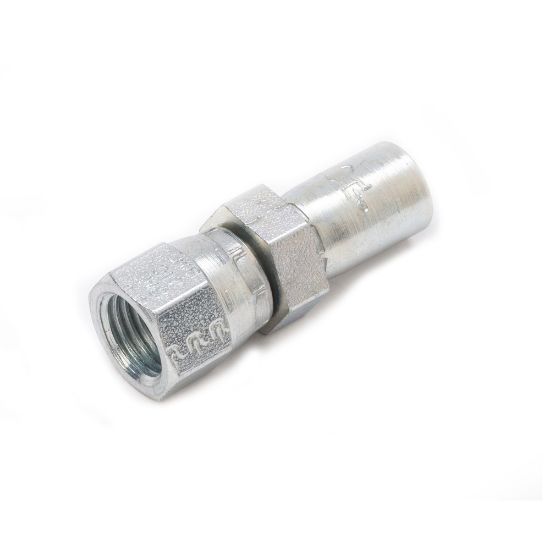

106CY-4-2 - Permanent Fittings for Parflex Hose – CY Series

Name: 106CY-4-2 - Permanent Fittings for Parflex Hose – CY Series
SKU: 106CY-4-2
Price: 14.18 USD
Availability: InStock

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Availability:

201 in stock

Kansas City, KS	77
Olivette, MO	62
TOPEKA, KS	23
Joplin, MO	17
Peoria, IL	12
Wichita, KS	6
Decatur, IL	4

Partner Available:

2153 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 106CY-4-2

$14.18/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Length (inch)	1.59"
Product Style	Female JIC 37° - Swivel - Straight	Hose I.D. (inch)	0.125"
Connection 2 Size	Flare 7/16"-20	Shape	Straight
Body Material	Steel	Notes	-4 Incorporates A Dual Seat
Shape	Straight SAE	Coating	Chromium 6 Free-plated
Hex Size	n/a	Industry	Off-road Machinery
Hex Size 1	n/a	Body Material	Steel
Configuration	Hose to Port	Fitting Length	1.59 inch
For Fluid Type	Oil	Connection 1 Size	1/8 inch Hose I.D.
Connection 1 Type	Hose	Connection 2 Size	Flare 7/16"-20 inch Thread
Connection 2 Type	Female	Connection Length	1 inch Cut-off allowance
Specifications Met	N/A	Maximum Operating Pressure	414 bar
