*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

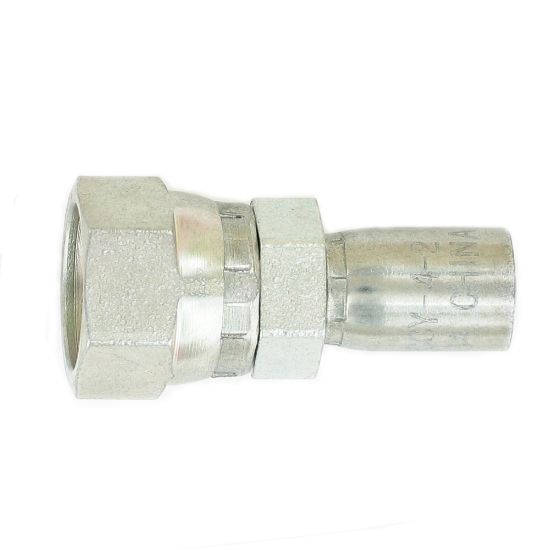

1JCCY-4-2 - Permanent Fittings for Parflex Hose – CY Series

Name: 1JCCY-4-2 - Permanent Fittings for Parflex Hose – CY Series
SKU: 1JCCY-4-2
Price: 30.36 USD
Availability: LimitedAvailability

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Availability:

3 in stock

Wichita, KS	2
Olivette, MO	1

Partner Available:

54 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1JCCY-4-2

$30.36/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Body Material	Steel	Product Style	Female Seal-Lok - Swivel - Straight - Short
Hose I.D. (inch)	0.125"	Connection 2 Size	9/16"-18 UNF
Length (inch)	1.29"	Body Material	Steel
Connection 2 Size	9/16"-18 inch	Specifications Met	N/A
Coating	Chromium 6 Free-plated	Configuration	Hose to Port
Connection 1 Type	Hose	Industry	Industrial Manufacturing Equipment
For Fluid Type	Water	Hex Size	0.5625 inch (see drawing legend H)
Connection 1 Size	1/8 inch	Maximum Operating Pressure	6000 psi
Shape	Straight Short	Hex Size 1	0.6875 inch (see drawing legend J)
Connection Length	3/4 inch Cut-off allowance	Fitting Length	1.29 inch
Connection 2 Type	Seal-Lok® Swivel

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
