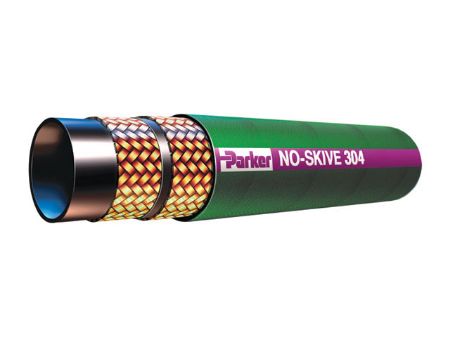

Phosphate-Ester Hose 1125-5000 PSI - 304 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 304 hose is a phosphate-ester compatible hose that has a pressure range of 1125-5000 PSI and is specifically designed to resist aggressive airline hydraulic fluids. The 304 hose is reinforced with two steel braids and has an EPDM rubber cover making it extremely durable. Sizes range from ¼” to 2” in diameter to fit the requirements of various markets.
Markets:
• Ground Support Equipment
• Industrial
Features/Benefits:
• 1125-5000 PSI in different sizes
• Dimensionally conforms with 100R2 Type AT specification
• Leak-free assemblies when used with EPDM O-ring face seals and proper fittings
Applications:
• Phosphate-ester base hydraulic fluids
Compatible Fittings:
• 43 series fittings
Read More...Markets:
• Ground Support Equipment
• Industrial
Features/Benefits:
• 1125-5000 PSI in different sizes
• Dimensionally conforms with 100R2 Type AT specification
• Leak-free assemblies when used with EPDM O-ring face seals and proper fittings
Applications:
• Phosphate-ester base hydraulic fluids
Compatible Fittings:
• 43 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Minimum Operating Temperature | Maximum Operating Temperature | Specifications Met | Cover Material | Outside Diameter | Cover Color | Compatible Fitting | Hose Reinforcement Material | Nominal Hose Inside Diameter | Inside Diameter | Minimum Bend Radius | Media | Weight | Hose Inner Tube Material | Maximum Operating Pressure | Inner Diameter | Pkg Qty | Material | Pkg Qty/UOM | Working Pressure | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Series | Working Pressure Range | Application | Hose Pressure Range | Hose Category |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 304-10 | 3 in stock | Backordered | $31.40/foot | FT | FT | -10 | -40 °F | 176 °F | N/A | Ethylene Propylene Diene Monomer (EPDM) | 25 mm | Green | 43 Series | 2 Braids of Steel Wire | 16 mm | 16 mm | 200 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | 0.79 kg/m | Ethylene Propylene Diene Monomer (EPDM) | 2750 psi | 0.625 Inch | 300 | Rubber | 300 FT | 5000 PSI (340 bar) | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | 304 | > 5000 PSI (345 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-12 | 188 in stock | 142 in stock | $41.70/foot | FT | FT | -12 | -40 °C | 80 °C | N/A | Ethylene Propylene Diene Monomer (EPDM) | 29 mm | Green | 43 Series | 2 Braids of Steel Wire | 19 mm | 3/4 inch | 240 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | 1 kg/m | Ethylene Propylene Diene Monomer (EPDM) | 15.5 MPa | 0.75 Inch | 175 | Rubber | 175 FT | 2250 PSI (160 bar) | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | 304 | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-16 | 59 in stock | 113 in stock | $53.79/foot | FT | FT | -16 | -40 °F | 176 °F | N/A | Ethylene Propylene Diene Monomer (EPDM) | 1.5 inch | Green | 43 Series | 2 Braids of Steel Wire | 25 mm | 1 inch | 300 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | 1 lb/ft | Ethylene Propylene Diene Monomer (EPDM) | 2000 psi | 1 Inch | 135 | Rubber | 135 FT | 2000 PSI (140 bar) | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | 304 | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-20 | Backordered | 11 in stock | $93.78/foot | FT | FT | -20 | -40 °C | 80 °C | N/A | Ethylene Propylene Diene Monomer (EPDM) | 1.860 inch | Green | 43 Series | 2 Braids of Steel Wire | 31 mm | 31.5 mm | 420 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | 1.73 kg/m | Ethylene Propylene Diene Monomer (EPDM) | 1625 psi | 1.25 Inch | 50 | Rubber | 50 FT | 1625 PSI (110 bar) | Fluid Connector | Inch | Hose Products | 1.25 Inch | Inch | Rubber | 304 | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-24 | Backordered | 63 in stock | $107.90/foot | FT | FT | -24 | -40 °F | 80 °C | N/A | Ethylene Propylene Diene Monomer (EPDM) | 2.140 inch | Green | 43 Series | 2 Braids of Steel Wire | 38 mm | 1-1/2 inch | 500 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | 1.44 lb/ft | Ethylene Propylene Diene Monomer (EPDM) | 8.6 MPa | 1.5 Inch | 50 | Rubber | 50 FT | 1625 PSI (110 bar) | Fluid Connector | Inch | Hose Products | 1.5 Inch | Inch | Rubber | 304 | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-32 | Backordered | 4 in stock | $124.56/foot | FT | -32 | -40 °F | 176 °F | N/A | Ethylene Propylene Diene Monomer (EPDM) | 2.640 inch | Green | 43 Series | 2 Braids of Steel Wire | 51 mm | 51 mm | 25 inch | Petroleum Hydraulic Fluids (Phosphate-ester) | 1.99 lb/ft | Ethylene Propylene Diene Monomer (EPDM) | 1125 psi | ||||||||||||||||||
| 304-4 | 174 in stock | 467 in stock | $19.00/foot | FT | FT | -4 | -40 °C | 80 °C | N/A | Ethylene Propylene Diene Monomer (EPDM) | 0.590 inch | Green | 43 Series | 2 Braids of Steel Wire | 6 mm | 6.3 mm | 100 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | 0.39 kg/m | Ethylene Propylene Diene Monomer (EPDM) | 34.5 MPa | 0.25 Inch | 200 | Rubber | 200 FT | 5000 PSI (340 bar) | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 304 | > 5000 PSI (345 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-6 | 143 in stock | 208 in stock | $22.29/foot | FT | FT | -6 | -40 °F | 176 °F | N/A | Ethylene Propylene Diene Monomer (EPDM) | 0.750 inch | Green | 43 Series | 2 Braids of Steel Wire | 10 mm | 10 mm | 130 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | 0.55 kg/m | Ethylene Propylene Diene Monomer (EPDM) | 4000 psi | 0.375 Inch | 200 | Rubber | 200 FT | 4000 PSI (280 bar) | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | 304 | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester | |
| 304-8 | 187 in stock | 691 in stock | $25.64/foot | FT | FT | -8 | -40 °C | 80 °C | N/A | Ethylene Propylene Diene Monomer (EPDM) | 22 mm | Green | 43 Series | 2 Braids of Steel Wire | 12 mm | 12.5 mm | 180 mm | Petroleum Hydraulic Fluids (Phosphate-ester) | 0.45 lb/ft | Ethylene Propylene Diene Monomer (EPDM) | 24 MPa | 0.5 Inch | 200 | Rubber | 200 FT | 3500 PSI (240 bar) | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 304 | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic Phosphate Ester | Medium | Hydraulic – Phosphate-Ester |
