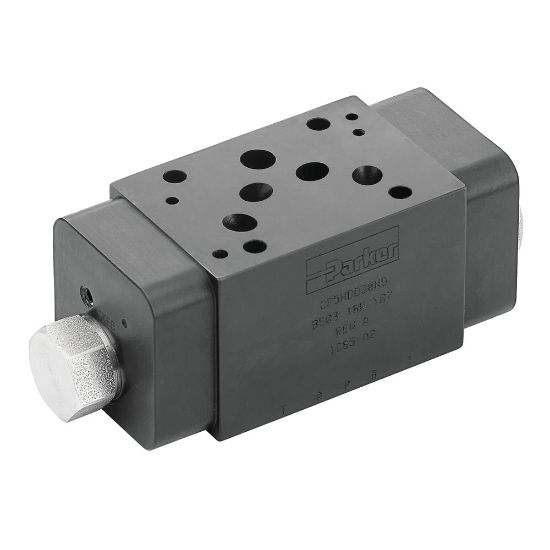

CP05DD30NA - Pilot Operated Check Sandwich Valve – CP Series

Parker’s CP series pilot operated check valves are designed for maximum flow rates.

Availability:	Backordered Estimated Lead Time: 194 days
Partner Available:	Backordered

SKU CP05DD30NA

$1,498.56/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000 PSI
Size	NFPA D05; CETOP 5; NG10	Port Connection	A and B Port Blocked
Product Style	Pilot Operated Check	Media	Oil
Maximum Operating Pressure	207 bar	Allowable Circuit Leakage	1 drops/min
Ratio	3:01	Cracking Pressure	30 ± 0.2 bar
Mounting Type	Subplate	Weight	1.3 kg

Product resources

Literature and Reference Materials

CP Product Series catalog pages (PDF)
MSG14-2500/US Industrial Hydraulic Valves (PDF)
