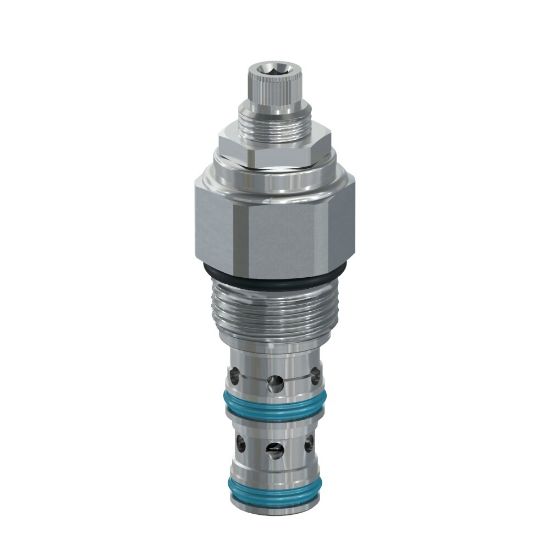

PRH101S30 - Pilot Operated Pressure Reducing Relieving Valves

Name: PRH101S30 - Pilot Operated Pressure Reducing Relieving Valves
SKU: PRH101S30
Price: 74.39 USD
Availability: InStock

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:

3 in stock

Olivette, MO

Partner Available:

74 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PRH101S30

$74.39/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Screw
Mounting Type	Screw in cartridge valve	Cracking Pressure	N/A
Seal Material	D-Ring (Standard)	Flow Rate	15 GAL/MIN, 56.3 L/MIN
Pressure Control Range	600-3000 PSI, 41.4-210 BAR	Body Material	n/a
Maximum Operating Pressure	5000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	+200 °F
Weight	0.5 lb	Actuation Type	Pressure Sensing
Maximum Pressure Setting	3000 psi	Operation Type	Automatic
Adjustment Mechanism	Screw	Function	Pilot Operated
Maximum Tank Pressure	5000 psi	Port Thread Size	n/a
Seal Material	D-Ring (Standard)	Cavity Size	C10-3
Configuration	Pressure Reducing/Relieving	Maximum Inlet Pressure Rating	5500 psi
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Mounting Type	Screw in cartridge valve
Installation Torque	69-75 Nm	Flow Rate	56.3 L/min
Maximum Flow Rate	56.3 L/min	Leak Rate	N/A cc/min
Pressure Control Range	600-3000 psi	Maximum Drain Flow Rate	0.25 Gal/min
Pressure Control Sensitivity	859 per turn psi	Standard Setting Pressure	1500 psi
Cracking Pressure	N/A psi
