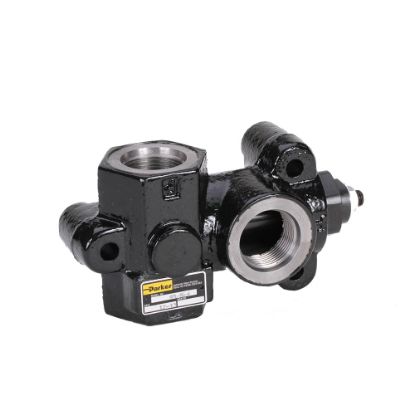

Pilot Operated Relief Valve - RPL Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s RPL In-Line Relief valves are pilot operated, ball-type relief valve. The RPL is a compact, low profile relief design that is screw adjustable from 500 to 5000 PSI. Their best application is a main system relief where smooth consistent performance is required.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Compact, low profile design
• High-tensile compacted graphite body
• Pilot operated for smooth, stable operation
• Standard porting options are 3/4” NPT and 1” NPT as well as SAE-12 and SAE-16
• Rated at 5000 PSI with SAE ports with a maximum recommend pump or actuator flow of 60 GPM
Applications:
• Suitable for various mobile applications
Read More...Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Compact, low profile design
• High-tensile compacted graphite body
• Pilot operated for smooth, stable operation
• Standard porting options are 3/4” NPT and 1” NPT as well as SAE-12 and SAE-16
• Rated at 5000 PSI with SAE ports with a maximum recommend pump or actuator flow of 60 GPM
Applications:
• Suitable for various mobile applications
| Action | SKU | Availability | Partner Available | Price | UOM | Port Size | Product Style | For Fluid Type | Connection Type | Minimum Operating Temperature | Maximum Operating Pressure | Body Material | Maximum Operating Temperature | Adjustment Mechanism | Seal Material | Mounting Type | Actuation Type | Connection Size | Weight | Pressure Control Range | Maximum Flow Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPL-100-A | Backordered | Backordered | $548.80/each | EA | 1- 1-1/2" NPT | Pilot Operated Relief Valve | Hydraulic Oil | NPT | -40 °F | 2000 psi | High Strength Cast Iron | +200 °F | Adjustable | Nitrile | In-Line | Hydraulic Pressure | 1" | 6 lb | Adjustable | 60 Gal/min | |
| RPL-12-A | Backordered | Backordered | $576.24/each | EA | SAE-12 | Pilot Operated Relief Valve | Hydraulic Oil | SAE | -40 °F | 5000 psi | High Strength Cast Iron | +200 °F | Adjustable | Nitrile | In-Line | Hydraulic Pressure | #12 | 6 lb | Adjustable | 60 Gal/min | |
| RPL-16-A | Backordered | Backordered | $548.80/each | EA | SAE-16 | Pilot Operated Relief Valve | Hydraulic Oil | SAE | -40 °F | 5000 psi | High Strength Cast Iron | +200 °F | Adjustable | Nitrile | In-Line | Hydraulic Pressure | #16 | 6 lb | Adjustable | 60 Gal/min | |
| RPL-75-A | Backordered | 1 Limited Stock | $548.80/each | EA | 3/4" NPT | Pilot Operated Relief Valve | Hydraulic Oil | NPT | -40 °F | 2000 psi | High Strength Cast Iron | +200 °F | Adjustable | Nitrile | In-Line | Hydraulic Pressure | 3/4" | 6 lb | Adjustable | 60 Gal/min |
