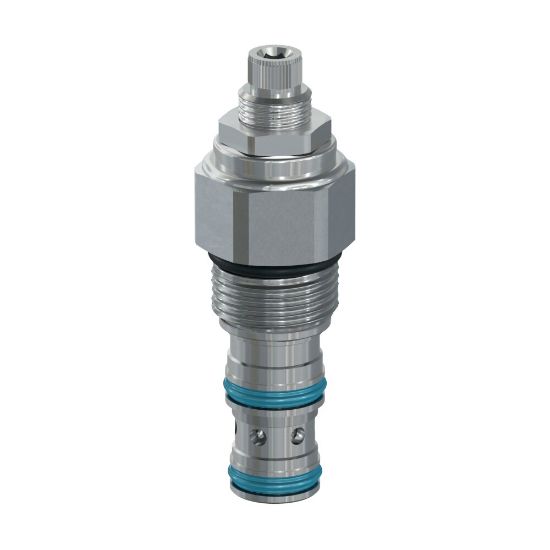

SVH101K30 - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU SVH101K30

$97.01/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Pilot Option	Internal	Drain Option	External
Adjustment Type	Knob	Rated Flow (gpm)	15
Cracking Pressure (psi)	N/A	Pressure Range Adjustment (psi)	200-3000
Port Size	n/a	Body Material	n/a
Flow Rate	15 Gal/min	Pilot Location	Internal
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Actuation Type	Pressure Sensing	Maximum Pressure Setting	210 bar
Adjustment Mechanism	Knob	Maximum Tank Pressure	350 bar
Seal Material	D-Ring (Standard)	Weight	1 lb
Cavity Size	C10-3	Function	Pilot Operated Sequence
Drain Option	External	Mounting Type	Threaded Cartridge Valve
Maximum Inlet Pressure Rating	5500 psi	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Temperature	+93 °C	Installation Torque	51-55 lb-ft
Maximum Operating Pressure	380 bar	Maximum Flow Rate	56.3 L/min
Standard Setting Pressure	1500 psi	Pressure Control Range	200-3000 psi
Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min	Reseat Pressure	90% of set pressure
Cracking Pressure	N/A bar	Maximum Drain Flow Rate	0.94 Gal/min
Pressure Control Sensitivity	59 per turn bar
