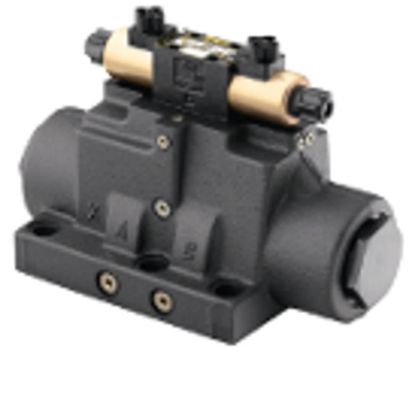

Pilot Operated, Solenoid Controlled, Directional Control Valve - D101VW Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D101V directional control valves are available in 2 or 3-position styles. These valves are manifold or subplate mounted, and conform to NFPA’s D10, CETOP 10 mounting pattern.
Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Explosion proof available
• Low pressure drop design
• Fast response option available
• Hardened spools provide long life
• No tools required for coil removal
• Wide variety of voltages and electrical connections
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Explosion proof available
• Low pressure drop design
• Fast response option available
• Hardened spools provide long life
• No tools required for coil removal
• Wide variety of voltages and electrical connections
Applications:
• Suitable for general hydraulic applications
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Flow Rate | Size | Maximum Operating Pressure | Mounting Type | Minimum Operating Temperature | Maximum Flow Rate | Valve Type | Seal Material | Mounting Type | Additional Options | Body Material | Actuation Type | Size | Maximum Operating Pressure | Weight | Maximum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D101VW001B4NJG3S | Backordered | Backordered | $5,344.92/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | NFPA 10 | 3000 psi | 77.1 lb | 140 °F | |
| D101VW001B4NJW43F | Backordered | Backordered | $5,887.56/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 3000 psi | 35 kg | 140 °F | |
| D101VW001B4NYW | Backordered | Backordered | $4,650.24/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | NFPA 10 | 207 bar | 77.1 lb | 140 °F | |
| D101VW001C1NDW | Backordered | Backordered | $5,260.08/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | NG32 | 207 bar | 35 kg | 140 °F | |
| D101VW001C1VKG56 | Backordered | Backordered | $5,117.60/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Fluorocarbon | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 3000 psi | 35 kg | 140 °F | |
| D101VW001C1VYGF3W | Backordered | Backordered | $6,212.00/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Fluorocarbon | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | NG32 | 3000 psi | 77.1 lb | 140 °F | |
| D101VW001C2NYGF56 | Backordered | Backordered | $4,995.20/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | NG32 | 3000 psi | 77.1 lb | 140 °F | |
| D101VW001C2VJP3A | Backordered | Backordered | $5,639.76/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Fluorocarbon | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 3000 psi | 35 kg | 140 °F | |
| D101VW001C4NJP3K | Backordered | Backordered | $6,788.88/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 207 bar | 35 kg | 140 °F | |
| D101VW001C4NYCF4 | Backordered | Backordered | $5,207.16/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | NFPA 10 | 207 bar | 77.1 lb | 140 °F | |
| D101VW001C4NYEU3F | Backordered | Backordered | POR | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 | 250 | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | NFPA 10 | 3000 | 77.1 | 140 | |
| D101VW001C4NYP3K | Backordered | Backordered | $6,788.88/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 3000 psi | 77.1 lb | 140 °F | |
| D101VW001C4NYWF | Backordered | Backordered | $5,044.20/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 207 bar | 77.1 lb | 140 °F | |
| D101VW001C5NJC3A | Backordered | Backordered | $5,578.44/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 207 bar | 35 kg | 140 °F | |
| D101VW001D4NJW | Backordered | Backordered | $5,044.20/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | NFPA 10 | 3000 psi | 35 kg | 140 °F | |
| D101VW001D4NYW | Backordered | Backordered | $5,044.20/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 3000 psi | 77.1 lb | 140 °F | |
| D101VW001H4VJW | Backordered | Backordered | $4,780.44/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Fluorocarbon | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 207 bar | 35 kg | 140 °F | |
| D101VW003C1NYCF | Backordered | Backordered | POR | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 3000 psi | 77.1 lb | 140 °F | |
| D101VW003C4NYG45 | Backordered | Backordered | $5,523.84/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | CETOP 10 | 3000 psi | 35 kg | 140 °F | |
| D101VW003C4NYPF3K | Backordered | Backordered | $7,096.32/each | EA | 250 GPM | NFPA 10; CETOP 10, NG32 | 3000 PSI | Subplate | -4 °F | 250 Gal/min | Pilot Operated Directional Control Valve | Nitrile | Subplate | Consult catalog for additional features. | Gray Iron | Solenoid | NFPA 10 | 3000 psi | 35 kg | 140 °F |
