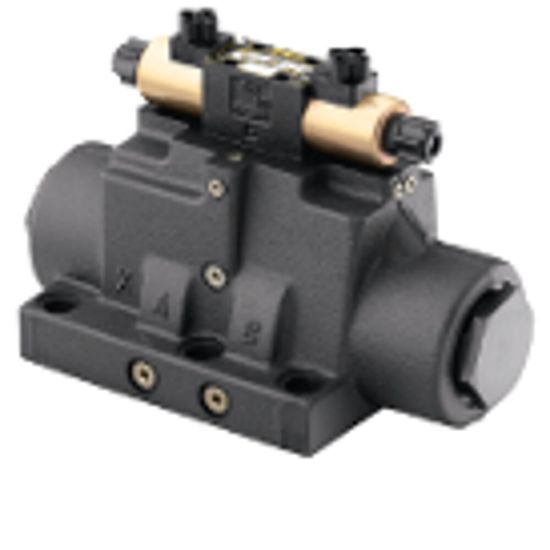

D101VW001C2VJP3A - Pilot Operated, Solenoid Controlled, Directional Control Valve - D101VW Series

Parker’s D101V directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU D101VW001C2VJP3A

$5,639.76/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA 10; CETOP 10, NG32
Maximum Operating Pressure	3000 PSI	Mounting Type	Subplate
Maximum Flow Rate	250 GPM	Valve Type	Pilot Operated Directional Control Valve
Weight	35 kg	Mounting Type	Subplate
Additional Options	Consult catalog for additional features.	Body Material	Gray Iron
Seal Material	Fluorocarbon	Maximum Operating Pressure	3000 psi
Actuation Type	Solenoid	Minimum Operating Temperature	-4 °F
Maximum Operating Temperature	140 °F	Maximum Flow Rate	250 Gal/min
Size	CETOP 10

Product resources

Literature and Reference Materials

Pilot Operated Directional Control Valve Catalog - D101VW Series (PDF)
