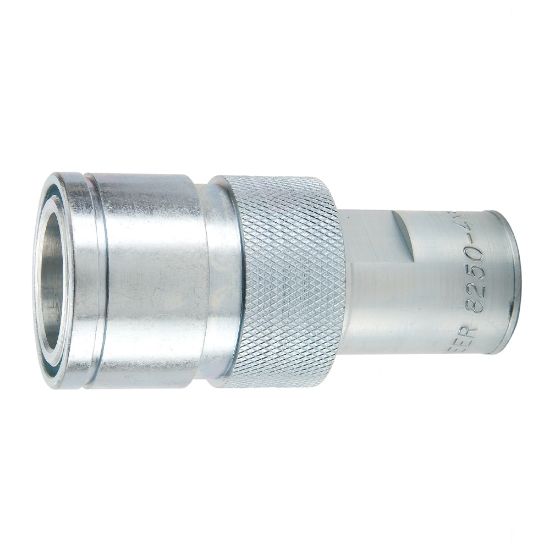

Picture of Pioneer Agricultural, Connect Under Pressure Quick Couplers, Breakaway Sleeve (ISO 5675) - 8200 Series - 8250-16

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pioneer Agricultural, Connect Under Pressure Quick Couplers, Breakaway Sleeve (ISO 5675) - 8200 Series - 8250-16

Parker's connect under pressure, agricultural quick couplers and nipples are the farmers choice where fluid lines require fast and easy connection and disconnection, featuring a sleeve designed to accomodate bracket/bulkhead mounting.
Availability:
Backordered
SKU 8250-16
$72.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection Thread Size (inch)7/8 - 14
Plating TypeZinc with clear trivalent chromateMediaHydraulic
Body MaterialSteelSpecifications MetISO 5675
Sleeve TypePush-pull BreakawayMinimum Operating Temperature-40 °F
Seal MaterialNitrileApplicationHydraulics
DivisionQuick Coupling DivisionMaximum Operating Pressure3000 psi
Valve TypeConnect Under PressureThread SizeFemale
Flow Rate12 Gal/minConnection TypeORB
Coupling HalfCouplerMaximum Operating Temperature250 °F
Lock TypeLocking ballsBody Size1/2 inch
