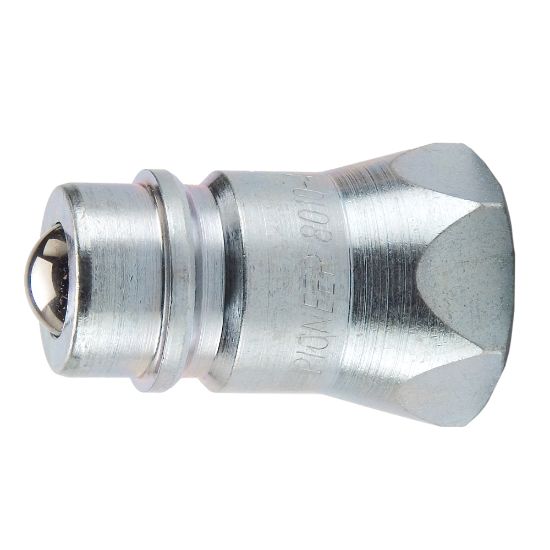

8010-15 - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series

Name: 8010-15 - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series
SKU: 8010-15
Price: 17.30 USD
Availability: InStock

Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.

Availability:

59 in stock

Kansas City, KS	13
TOPEKA, KS	13
Wichita, KS	12
Olivette, MO	5
COLUMBIA, MO	5
Peoria, IL	4
WICHITA, KS	3
Olivette, MO	2
Decatur, IL	2

Partner Available:

156 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 8010-15

$17.30/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Port Connection (inch)	3/4 - 16
Valve Style	Ball	Connection Type	ORB
Body Material	Steel	Specifications Met	ISO 5675
Coupling Half	Nipple	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	250 °F	Dimensional Weight	0.03998800959232614 lb
Media	Hydraulic	Plating Type	Zinc with clear trivalent chromate
Seal Material	n/a	Thread Size	Female
Flow Rate	12 Gal/min	Body Size	1/2 inch
Maximum Operating Pressure	3000 psi

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
