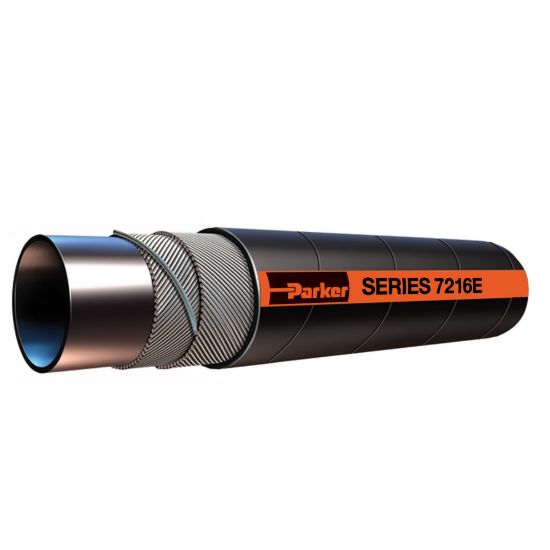

7216E-2502 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E

Name: 7216E-2502 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E
SKU: 7216E-2502
Price: 19.38 USD
Availability: InStock

Wildcatter Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 180°F and 150 psi, Series 7216E

Availability:

4 in stock

Wichita, KS

Partner Available:

1811 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7216E-2502

$19.38/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	150
Hose I.D. (inch)	2-1/2	Specifications Met	N/A
Design Factor	n/a	Package Type	Coil
Length per Package	100 ft	Maximum Operating Pressure	150 psi
Cover Color	Black	Minimum Operating Temperature	-35 °F
Maximum Operating Temperature	180 °F	Hose Inner Tube Material	Black
Cover Material	Synthetic Rubber	Inside Diameter	63.5 mm
Compatible Fitting	43 Series	Media	Fuels (Diesel) - Check fuel type with our catalogue chart.
Minimum Bend Radius	177.8 mm	Cover Structure	Wrapped
Vacuum Pressure Rating	Full	Weight	1.55 lb/ft
Outside Diameter	3 inch	Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
