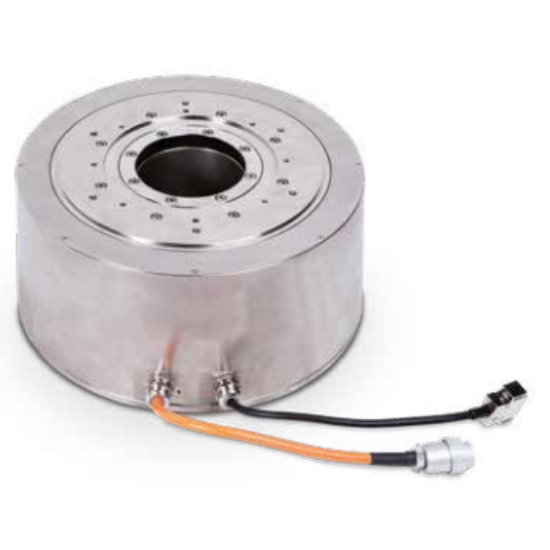

PM-DDB06DN0H

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU PM-DDB06DN0H

Products specifications

Attribute name	Attribute value
UOM	EA	Radial Run-Out	0.03 mm
Angular Acceleration	141.6 rad/s2	Accuracy for ABS Position	±30 arc-sec
Power Rate	42.35 kW/s	Rated Power	126 W
Allowable Moment Load	40 Nm	Series	PM-DD
Accuracy for Repeatability	±1.3 arc-sec	Rated Velocity	200 rpm
Diameter	ø135 mm	Maximum Velocity	500 rpm
Axial Run-Out	0.015 mm	Peak Current	4.38 Arm
Type	Direct Drive/Rotary	Rated Current	1.46 Arm
Allowable Thrust Load	1500 N	Rated Torque	6 Nm
Peak Torque	18 Nm	Torque Constant	4.25 Nm/Arm
Motor	Servo
