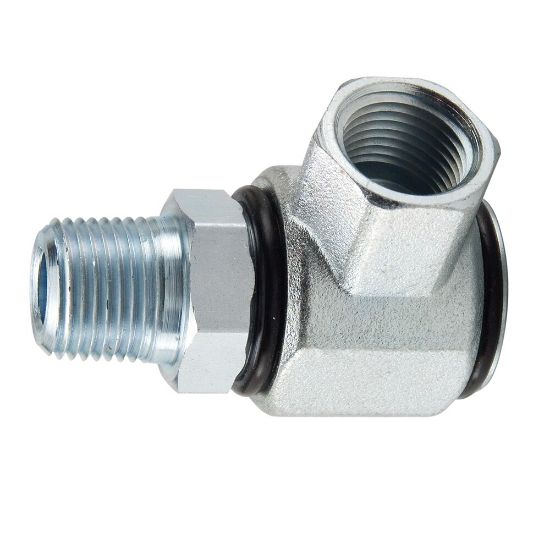

S2102-12-12 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU S2102-12-12

$192.43/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Connection Thread Size (inch)	3/4 - 14 NPTF
Plating	Zinc with clear trivalent chromate	Housing Connection Style	Female NPTF
Shaft Connection Style	Male NPTF	Shaft Connection Thread Size (inch)	3/4 - 14 NPTF
Seal Material	Nitrile	Configuration	90 degree
Maximum Operating Pressure	3000 psi	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Body Material	Steel
Maximum Operating Speed	10 RPM
