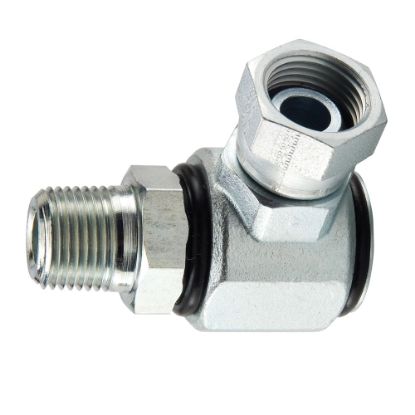

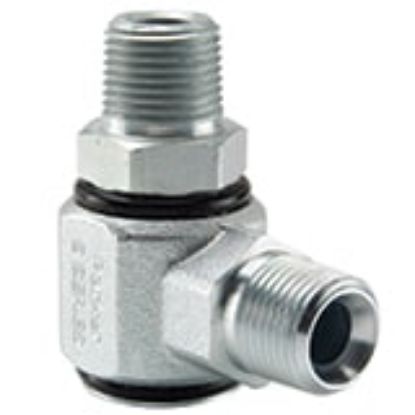

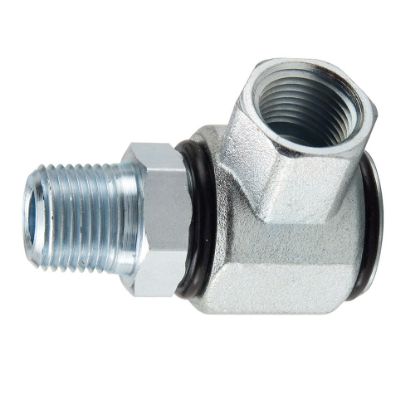

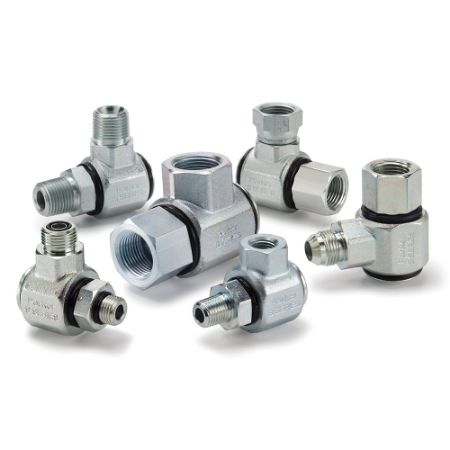

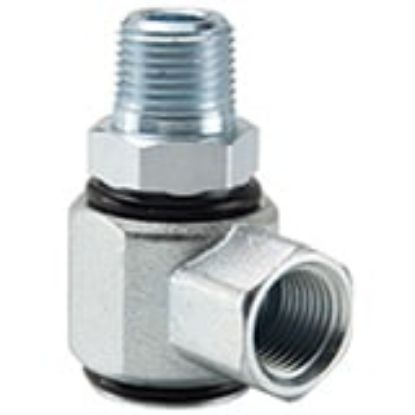

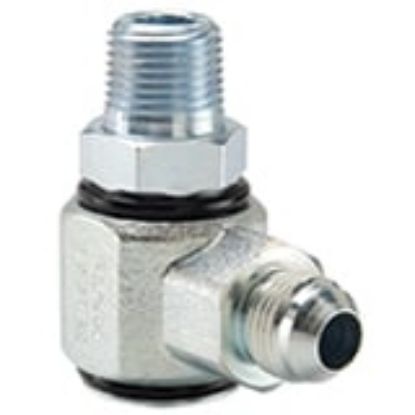

S Series Swivels (hydraulic or pneumatic) up to 3000 psi, are designed to eliminate hose twist and torque that may contribute to premature hose failure. These 90° Swivels have a pressure balanced design in a compact, forged body. As a result of the pressure balanced design, the S Series Swivel does not experience a significant increase in torque as pressure rises. A wide variety of port options are available for both the housing and shaft ends. Maximum rotation speed is 10 rpm.

Technical Characteristics:
• Sizes: 1/4” – 3/4”
• Material: Carbon Steel
• Shaft Port Ends: Male NPTF, Female NPTF, Male JIC 37 degree, Male SAE O-Ring Straight Thread
• Housing Port Ends: Male NPTF, Feamle NPTF, Male JIC 37 degree, Male SAE O-Ring Straight Thread, Female NPSM Pipe Swivel, Female SAE Straight Thread
• Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon
• Optional Nickel plating

Markets:
• Industrial
• Construction
• Agriculture

Features/Benefits:
• Pressure balanced design allows swivel movement to be minimally affected by internal fluid pressure
• Forged body is compact to fit into confined spaces
• Case hardened for extended service life
• Eliminates hose twist and torque caused by the movement of working equipment

Applications:
• Drop-down air lines
• Aerial lift equipment
• Hose reels
• Articulating arm equipment
• Refuse trucks
