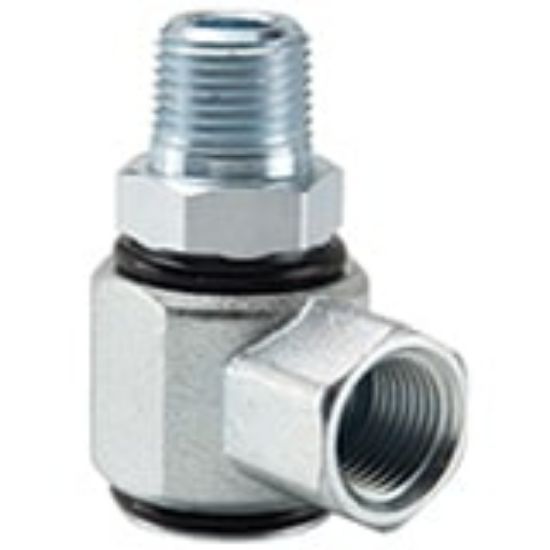

S2102-6-4 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU S2102-6-4

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Connection Style	Female NPTF
Plating	Zinc with clear trivalent chromate	Shaft Connection Thread Size (inch)	3/8 - 18 NPTF
Shaft Connection Style	Male NPTF	Seal Material	Nitrile
Housing Connection Thread Size (inch)	1/4 - 18 NPTF	Maximum Operating Speed	10 RPM
Configuration	90 degree	Maximum Operating Pressure	3000 psi
Body Material	Steel	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F
