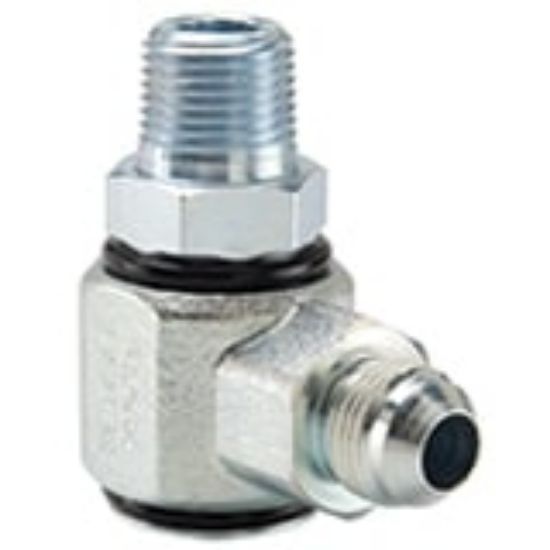

S2103-6-6 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	12 in stock

SKU S2103-6-6

$103.24/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Plating	Zinc with clear trivalent chromate
Shaft Connection Thread Size (inch)	3/8 - 18 NPTF	Shaft Connection Style	Male NPTF
Housing Connection Style	Male JIC 37 degree	Seal Material	Nitrile
Housing Connection Thread Size (inch)	9/16 - 18 UNF	Dimensional Weight	0.12464028776978417 lb
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Material	Steel	Maximum Operating Speed	10 RPM
Maximum Operating Pressure	3000 psi	Configuration	90 degree

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
