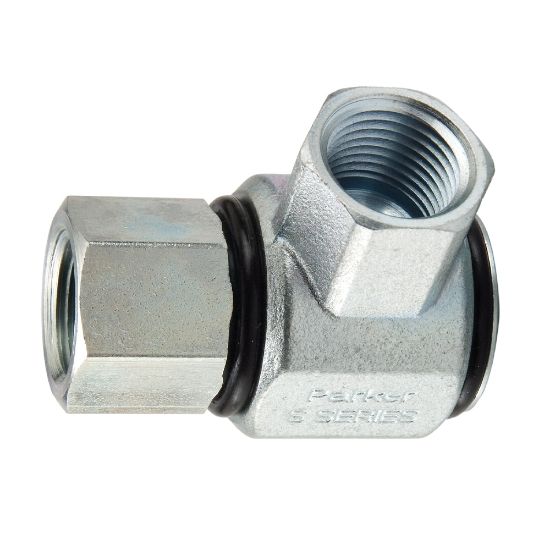

S2202-8-8 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	8 in stock

SKU S2202-8-8

$115.78/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Plating	Zinc with clear trivalent chromate
Housing Connection Style	Female NPTF	Shaft Connection Thread Size (inch)	1/2 - 14 NPTF
Seal Material	Nitrile	Shaft Connection Style	Female NPTF
Housing Connection Thread Size (inch)	1/2 - 14 NPTF	Dimensional Weight	0.12464028776978417 lb
Body Material	Steel	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Maximum Operating Speed	10 RPM
Configuration	90 degree	Maximum Operating Pressure	3000 psi
