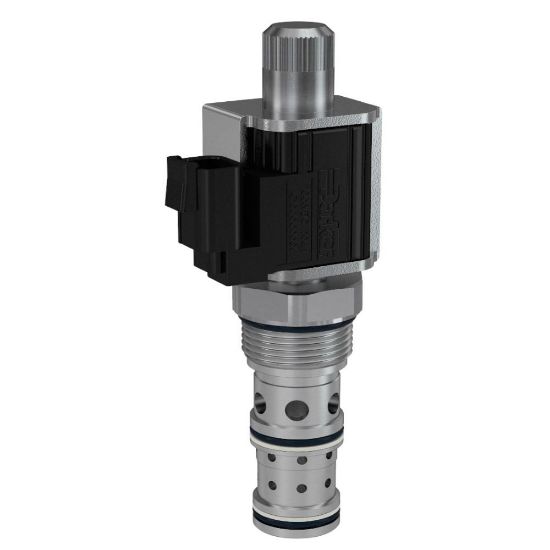

Pressure Compensated Proportional Poppet Valves - FAPC161NN

Name: Pressure Compensated Proportional Poppet Valves - FAPC161NN
SKU: FAPC161NN

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU FAPC161NN

$1,084.76

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Flow Rate	22 GAL/MIN, 83 L/MIN
Actuation Type	Electrical	Maximum Operating Pressure	3000 psi
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Operation Type	Solenoid Operated	Cavity Size	C16-3
Configuration	Normally Open	Maximum Operating Temperature	+121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Frequency	100-400 Hz
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Maximum Inlet Pressure Rating	210 bar
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Flow Rate	83 L/min
Weight	1.08 lb	Function	Proportional Pressure Compensated Flow Control/Regulator
Maximum Flow Rate	83 L/min	Installation Torque	80-85 lb-ft
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 10%
Flow Direction	Top to Side (3 - 2)	Power Consumption	18 W
Coil Nut Tightening Torque	Finger Tight Nm	Minimum Pressure Differential	34 bar
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
