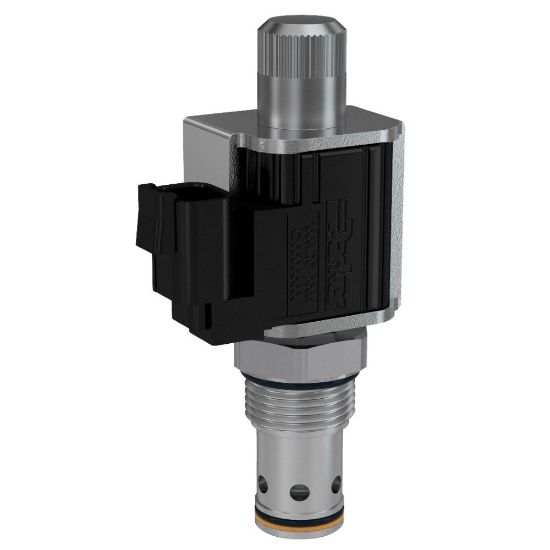

FAP121NN - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAP121NN

$470.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Flow Rate	26 GAL/MIN, 98.5 L/MIN
Actuation Type	Electrical	Seal Material	Nitrile
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Maximum Operating Pressure	210 bar
Override Functionality	n/a	Flow Rate	26 Gal/min
Cavity Size	C12-2F	Configuration	Normally Open
Flow Direction	Side to Nose (2 - 1)	Maximum Operating Temperature	+250 °F
Function	Proportional Flow Control/Regulator	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Frequency	100-400 Hz	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Variation of Opening Point	N/A
Maximum Inlet Pressure Rating	210 bar	Hysteresis	< 15%
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Installation Torque	55 lb-ft
Weight	0.68 lb	Maximum Flow Rate	98.5 L/min
Coil Type	5/8" Super Coil Low Watt (CAS)	Power Consumption	18 W
Coil Nut Tightening Torque	1.4 Nm	Variation of Closing Point	60-65% of Input Signal
Minimum Pressure Differential	300 psi
