PS1E101

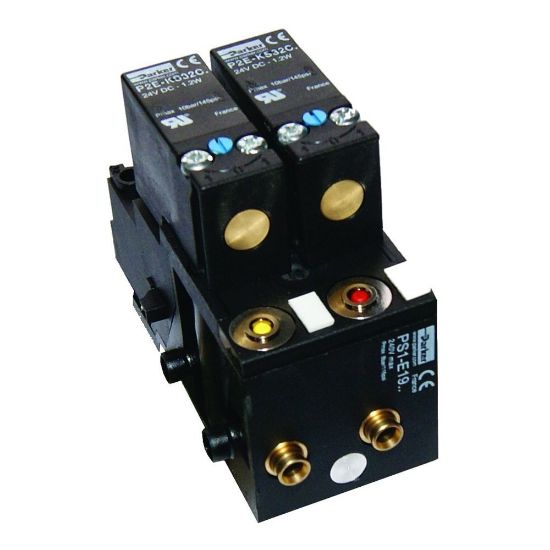

Parker PS1E101 | Solenoid Valve | Material Glass Filled Polyamide | Series Connection and End Module Assemblies | Mounting Option Stacking

Availability:	Backordered Estimated Lead Time: 8 days
Partner Available:	Backordered

SKU PS1E101

$66.16/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Single Air Supply Connection
Port Size	6mm	Series	Connection and End Module Assemblies
Media	Air	Standard	IP20
Seal Material	Poppet: Polyurethane, Seals: Nitrile (Buna N)	Electrical Connection	Terminal Strip
Lubricant	Lubricated or Non-Lubricated Air	Minimum Flow Rate	0.14 Cv
Mounting Option	Stacking	Override Functionality	Non-Locking and Locking Manual Overrides
Pressure Rating	40 to 120 psig	Port Type	Tube Push-In Connections, Push-in Ã˜ 6mm
Input Voltage	12 to 48 VDC, 120/240 VAC	Minimum Operating Pressure	40 psig
Power Consumption	1.2 W, 1.6 VA
