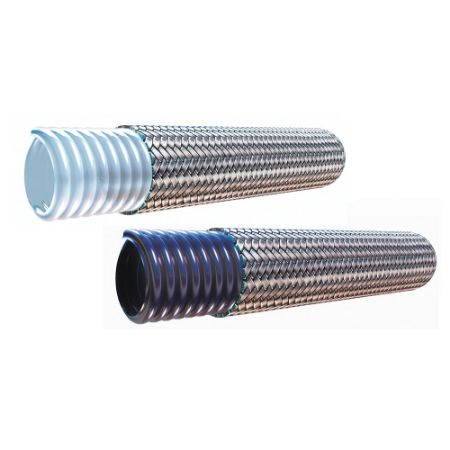

PTFE Hose - Convoluted
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 939/939B series convoluted PTFE hoses feature superior flexibility and kink resistance for successful operation in chemical transfer, high temperature hydraulics, and hose applications that require tight routings. In addition, the flexible capabilities of the hose allow for an improved bend radius than a 919/919B hose for simplified routing and installation. This hose series is offered with a natural, FDA compliant core tube (939) or with a static dissipative core tube (939B) for applications where electrostatic charges could occur during media transfer.
Both are reinforced with a 304 Stainless Steel braid for a durable, flexible, kink-resistant solution in numerous fluid handling, transportation and military market applications.
Markets:
• Fluid Handling
• Transportation
• Military
• Industrial
Features/Benefits:
• Excellent flexibility
• Kink resistance for simplified routing and installation
• Great chemical compatibility
• High temperature capability
Applications:
• Chemical transfer
• General hydraulics
• Hose applications requiring tight routings
• High temperature media transfer
Certifications/Compliance:
• FDA CFR 177.1550 (939 only)
Technical Specifications:
• Use hose type 939B with static-dissipative core tube when conveying non-conducting fluids such as oils, paints, fuels, steam, etc.
• Not suggested for steam-cold water cycling applications
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Both are reinforced with a 304 Stainless Steel braid for a durable, flexible, kink-resistant solution in numerous fluid handling, transportation and military market applications.
Markets:
• Fluid Handling
• Transportation
• Military
• Industrial
Features/Benefits:
• Excellent flexibility
• Kink resistance for simplified routing and installation
• Great chemical compatibility
• High temperature capability
Applications:
• Chemical transfer
• General hydraulics
• Hose applications requiring tight routings
• High temperature media transfer
Certifications/Compliance:
• FDA CFR 177.1550 (939 only)
Technical Specifications:
• Use hose type 939B with static-dissipative core tube when conveying non-conducting fluids such as oils, paints, fuels, steam, etc.
• Not suggested for steam-cold water cycling applications
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Size | Hose Type | Outside Diameter | Weight | Cover Material | Compatible Fitting | Maximum Operating Temperature | Hose Reinforcement Material | Vacuum Pressure Rating | Media | Size | Inside Diameter | Design Factor | Hose Inner Tube Material | Minimum Bend Radius | Minimum Operating Temperature | Maximum Operating Pressure | Specifications Met | Product Style | Hose Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 939-12 | 61 in stock | 51 in stock | $51.81/foot | FT | 3/4 | -12 | Natural PTFE | 27.7 mm | 0.47 kg/m | n/a | 93N Series | 450 °F | Stainless Steel | 711.2 mm-Hg | Fuels (Oil) | -12 | 19 mm | 4:1 | Polytetrafluoroethylene (PTFE) | 95 mm | -100 °F | 7.6 MPa | FDA 21 CFR 177.1550 (Tube) | |||
| 939-16 | 27 in stock | 103 in stock | $62.17/foot | FT | 1 | -16 | Natural PTFE | 33.8 mm | 0.67 kg/m | n/a | 93N Series Cannot be crimped on Minikrimp | 450 °F | Stainless Steel | 711.2 mm-Hg | Chemicals | -16 | 25 mm | 4:1 | Polytetrafluoroethylene (PTFE) | 127 mm | -100 °F | 6.9 MPa | FDA 21 CFR 177.1550 (Tube) | |||
| 939-20 | 8 in stock | 12 in stock | $87.88/foot | FT | 1-1/4 | -20 | Natural PTFE | 44.5 mm | 1.04 kg/m | n/a | 93N Series Cannot be crimped on Minikrimp | 450 °F | Stainless Steel | 20 Inch-Hg | Inert Gases | -20 | 1-1/4 inch | 4:1 | Polytetrafluoroethylene (PTFE) | 6-1/4 inch | -73 °C | 69 bar | FDA 21 CFR 177.1550 (Tube) | |||
| 939-24 | Backordered | 91 in stock | $109.40/foot | FT | 1-1/2 | -24 | Natural PTFE | 52.1 mm | 0.80 lb/ft | n/a | 93N Series Cannot be crimped on Minikrimp | 232 °C | Stainless Steel | 304.8 mm-Hg | Lubricants (Oils) | -24 | 38 mm | 4:1 | Polytetrafluoroethylene (PTFE) | 7-1/2 inch | -73 °C | 52 bar | FDA 21 CFR 177.1550 (Tube) | |||
| 939-32 | Backordered | 13 in stock | $135.68/foot | FT | 2 | -32 | Natural PTFE | 2.560 inch | 1.01 lb/ft | n/a | 93N Series Cannot be crimped on Minikrimp | 450 °F | Stainless Steel | 127 mm-Hg | Industrial Gases | -32 | 2 inch | 4:1 | Polytetrafluoroethylene (PTFE) | 10 inch | -100 °F | 17 bar | FDA 21 CFR 177.1550 (Tube) | |||
| 939-6 | 46 in stock | 14 in stock | $39.11/foot | FT | 3/8 | -6 | Natural PTFE | 15 mm | 0.12 lb/ft | n/a | 93N Series | 450 °F | Stainless Steel | 28 Inch-Hg | Petroleum Hydraulic Fluids | -6 | 10 mm | 4:1 | Polytetrafluoroethylene (PTFE) | 2-1/4 inch | -73 °C | 103 bar | FDA 21 CFR 177.1550 (Tube) | |||
| 939-8 | 174 in stock | 205 in stock | $41.49/foot | FT | 1/2 | -8 | Natural PTFE | 20.1 mm | 0.31 kg/m | n/a | 93N Series | 232 °C | Stainless Steel | 711.2 mm-Hg | Water | -8 | 13 mm | 4:1 | Polytetrafluoroethylene (PTFE) | 2-7/8 inch | -73 °C | 9.3 MPa | FDA 21 CFR 177.1550 (Tube) | |||
| 939B-10 | Backordered | 28 in stock | $61.15/foot | FT | 5/8 | -10 | Static Dissipative PTFE | 0.880 inch | 0.24 lb/ft | n/a | 93N Series | 232 °C | Stainless Steel | 711.2 mm-Hg | Industrial Gases | -10 | 5/8 inch | 4:1 | Polytetrafluoroethylene (PTFE) Static Dissipative | 3 inch | -100 °F | 1000 psi | N/A | Static Dissipative | Static Dissipative | |
| 939B-12 | 119 in stock | 69 in stock | $48.24/foot | FT | 3/4 | -12 | Static Dissipative PTFE | 27.7 mm | 0.47 kg/m | n/a | 93N Series | 450 °F | Stainless Steel | 28 Inch-Hg | Fuels (Oil) | -12 | 3/4 inch | 4:1 | Polytetrafluoroethylene (PTFE) Static Dissipative | 95 mm | -73 °C | 1100 psi | N/A | Static Dissipative | Static Dissipative | |
| 939B-16 | 46 in stock | 286 in stock | $57.82/foot | FT | 1 | -16 | Static Dissipative PTFE | 33.8 mm | 0.67 kg/m | n/a | 93N Series Cannot be crimped on Minikrimp | 450 °F | Stainless Steel | 711.2 mm-Hg | Food & Beverage | -16 | 1 inch | 4:1 | Polytetrafluoroethylene (PTFE) Static Dissipative | 5 inch | -100 °F | 6.9 MPa | N/A | Static Dissipative | Static Dissipative | |
| 939B-20 | Backordered | 156 in stock | $81.05/foot | FT | 1-1/4 | -20 | Static Dissipative PTFE | 1.750 inch | 1.04 kg/m | n/a | 93N Series Cannot be crimped on Minikrimp | 450 °F | Stainless Steel | 20 Inch-Hg | Fuels (Oil) | -20 | 1-1/4 inch | 4:1 | Polytetrafluoroethylene (PTFE) Static Dissipative | 159 mm | -73 °C | 69 bar | N/A | Static Dissipative | Static Dissipative | |
| 939B-24 | 34 in stock | 63 in stock | $93.13/foot | FT | 1-1/2 | -24 | Static Dissipative PTFE | 52.1 mm | 1.18 kg/m | n/a | 93N Series Cannot be crimped on Minikrimp | 450 °F | Stainless Steel | 12 Inch-Hg | Inert Gases | -24 | 1-1/2 inch | 4:1 | Polytetrafluoroethylene (PTFE) Static Dissipative | 7-1/2 inch | -100 °F | 750 psi | N/A | Static Dissipative | Static Dissipative | |
| 939B-32 | 160 in stock | 2 Limited Stock | $127.19/foot | FT | 2 | -32 | Static Dissipative PTFE | 65 mm | 1.01 lb/ft | n/a | 93N Series Cannot be crimped on Minikrimp | 450 °F | Stainless Steel | 5 Inch-Hg | Industrial Fluids | -32 | 51 mm | 4:1 | Polytetrafluoroethylene (PTFE) Static Dissipative | 254 mm | -100 °F | 1.7 MPa | N/A | Static Dissipative | Static Dissipative | |
| 939B-6 | Backordered | 78 in stock | $37.80/foot | FT | 3/8 | -6 | Static Dissipative PTFE | 0.590 inch | 0.12 lb/ft | n/a | 93N Series | 232 °C | Stainless Steel | 711.2 mm-Hg | Industrial Fluids | -6 | 10 mm | 4:1 | Polytetrafluoroethylene (PTFE) Static Dissipative | 57 mm | -100 °F | 10.3 MPa | N/A | Static Dissipative | Static Dissipative | |
| 939B-8 | 314 in stock | 833 in stock | $34.80/foot | FT | 1/2 | -8 | Static Dissipative PTFE | 0.790 inch | 0.21 lb/ft | n/a | 93N Series | 450 °F | Stainless Steel | 711.2 mm-Hg | Industrial Fluids | -8 | 1/2 inch | 4:1 | Polytetrafluoroethylene (PTFE) Static Dissipative | 2-7/8 inch | -100 °F | 1350 psi | N/A | Static Dissipative | Static Dissipative |
