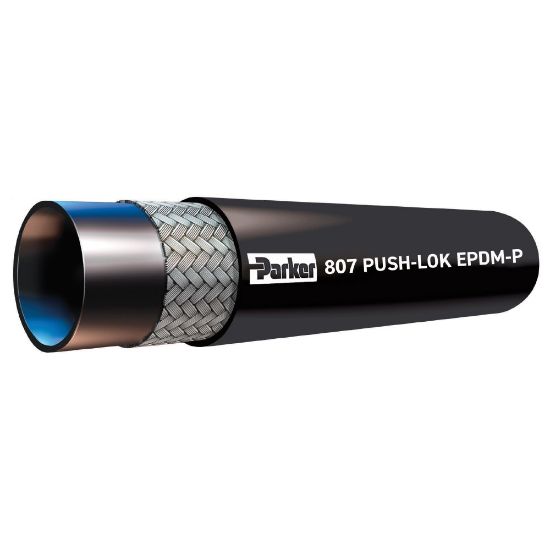

807-4-BLK-RL - Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 807-4-BLK-RL

$3.67/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Material	Black synthetic rubber smooth finish
Hose Outside Diameter	12.7 mm	Maximum Operating Pressure	150 psi
Minimum Operating Temperature	212 °C	Hose Inner Tube Material	Black EPDM peroxide cured
Weight	.011 kg/m	Media	air, water (including PCW), coolant solutions
Compatible Fitting	82 Series	Specifications Met	UL94 V-0 Flame resistance rating
Maximum Operating Temperature	100 °C	Minimum Bend Radius	25.4 mm
Hose Reinforcement Material	One fiber braid

Product resources

Literature and Reference Materials
