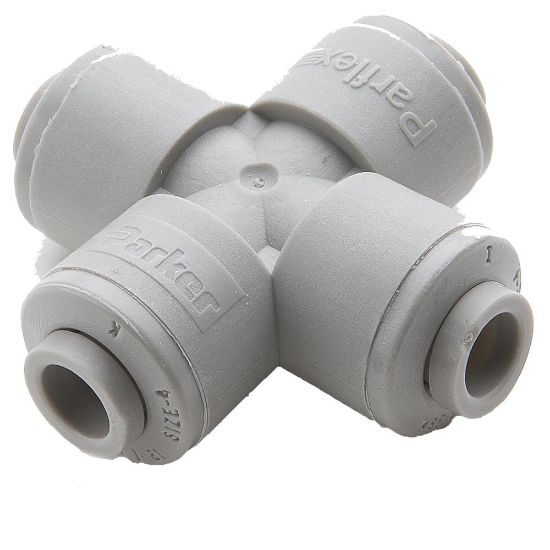

A6CU6-MG - Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal

Name: A6CU6-MG - Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal
SKU: A6CU6-MG
Price: 6.52 USD
Availability: InStock

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

Availability:

41 in stock

Kansas City, KS

Partner Available:

46 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU A6CU6-MG

$6.52/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Size	3/8"
Body Material	Acetal	Connection 3 Size	3/8"
Connection 2 Size	3/8"	Color	Gray
Shape	Cross	Connection 2 Type	Push-to-Connect
Connection 1 Type	Push-to-Connect	Connection 3 Type	Push-to-Connect
Configuration	Tube to Tube	Connection 1 Size	3/8"
Connection 4 Type	Push-to-Connect	Body Material	Acetal
Dimensional Weight	0.2914 lb	Seal Material	EPDM (O-Ring)
Specifications Met	NSF/ANSI/CAN 61	Maximum Operating Temperature	180 °F
Minimum Operating Temperature	-20 °F	Maximum Operating Pressure	300 psi
