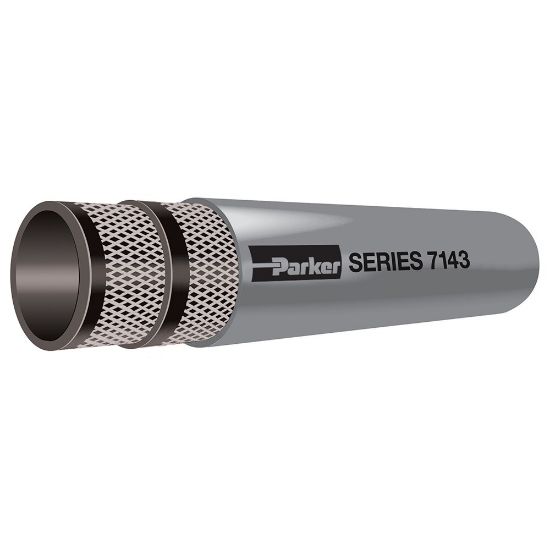

7143-382BK - PWD™ Pressure Wash Down Hose, Series 7143

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 177 days
Partner Available:	Backordered

SKU 7143-382BK

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Color	Black	Maximum Working Pressure (psi)	1500
Minimum Operating Temperature	-40 °F	Specifications Met	N/A
Inside Diameter	3/8 inch	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Maximum Operating Temperature	250 °F	Minimum Bend Radius	4 inch
Cover Color	Black	Package Type	Reel
Hose Inner Tube Material	Black	Weight	0.30 kg/m
Hose Reinforcement Material	Mutiple Plies of Textile	Compatible Fitting	HY Series
Length per Package	700 ft	Media	Water (Hot Water)
Maximum Operating Pressure	103.4 bar	Outside Diameter	18.6 mm

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
