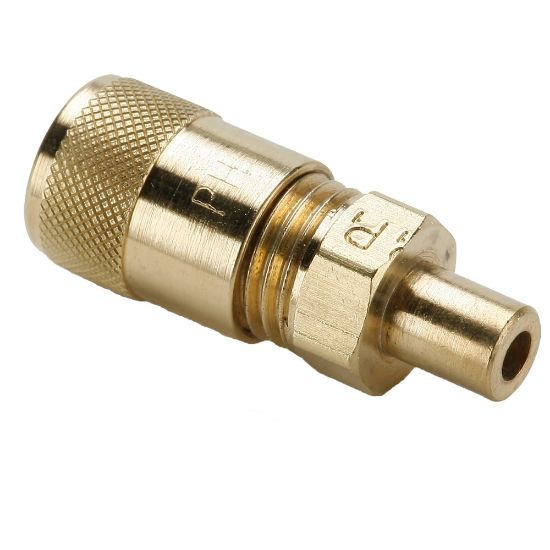

Refrigeration Access Valves - AVUS-46

Name: Refrigeration Access Valves - AVUS-46
SKU: AVUS-46

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Availability:

Backordered

SKU AVUS-46

$31.92

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	3/8	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Solder	Connection 1 Style	SAE Male Flare
Shape	Straight Solder Connector	Style	Flare to Tube or Solder
Connection 2 Solder O.D. (inch)	1/2	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Pressure	34 bar
Nut Material	Brass	Maximum Operating Temperature	220 °F
Specifications Met	Valve Core Meets ARI Standard 720	Minimum Operating Temperature	-28 °C
Media	Fluorocarbon Refrigerants
