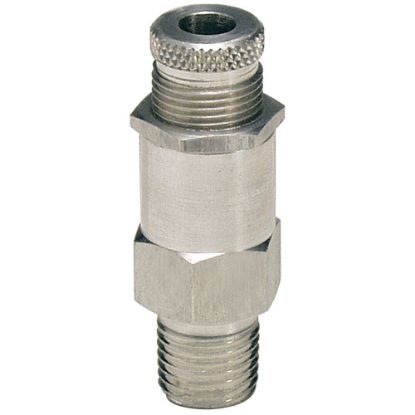

Relief Valves - RV Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The RV01 series is a compact relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. It has a compact lightweight aluminum construction with high relief capacity (70.39 Cv @ 150 PSI). The adjustment range is called out within the part number and set at factory.
Markets
• General Industrial
• Factory Automation
• Automotive
Features/Benefits
• Compact and light weight construction
• High relief capacity
Applications
• General Assembly
• Packaging
• Conveyance
• General Pneumatics
Additional Information
• Connection: Male
• Relief Range: 10 to 200 psig (or 0.7 to 14 bar)
• Maximum Inlet Pressure: 300 psig (or 20.7 bar)
• Adjustment: Control Knurled Knob
• Material Aluminum Body, Steel Locking Nut and Spring, Plastic Poppet, Nitrile Seat
• Thread Size: 1/4"
• Thread Type: NPT
• Temperature Range: 32°F to 200°F (or 0°C to 93°C)
| Action | SKU | Availability | Partner Available | Price | UOM | Pressure Relief Setting (psig) | Seal Material | Pressure Range (psig) | Pressure Relief Setting | Maximum Inlet Pressure Rating | Port Size | Body Material | Adjustment Mechanism | Port Type | Adjustment Screw Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RV01A1N010 | Backordered | Backordered | $42.84/each | EA | 10 | Buna | 10-55 | 10 psig | 20.7 barg | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N015 | Backordered | Backordered | $42.84/each | EA | 15 | Buna | 10-55 | 1.05 barg | 20.7 barg | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N020 | Backordered | Backordered | $42.84/each | EA | 20 | Buna | 10-55 | 1.4 barg | 20.7 barg | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N025 | Backordered | Backordered | $42.84/each | EA | 25 | Buna | 10-55 | 1.75 barg | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N030 | Backordered | Backordered | $42.84/each | EA | 30 | Buna | 10-55 | 30 psig | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N035 | Backordered | Backordered | $42.84/each | EA | 35 | Buna | 10-55 | 35 psig | 20.7 barg | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N040 | Backordered | Backordered | $42.84/each | EA | 40 | Buna | 10-55 | 40 psig | 20.7 barg | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N045 | Backordered | Backordered | $42.84/each | EA | 45 | Buna | 10-55 | 45 psig | 20.7 barg | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N050 | Backordered | 3 in stock | $42.84/each | EA | 50 | Buna | 10-55 | 3.5 barg | 20.7 barg | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N055 | Backordered | Backordered | $42.84/each | EA | 55 | Buna | 10-55 | 3.85 barg | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N060 | Backordered | Backordered | $42.84/each | EA | 60 | Buna | 60-100 | 60 psig | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N065 | Backordered | 5 in stock | $42.84/each | EA | 65 | Buna | 60-100 | 65 psig | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N070 | Backordered | Backordered | $42.84/each | EA | 70 | Buna | 60-100 | 70 psig | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N075 | Backordered | Backordered | $42.84/each | EA | 75 | Buna | 60-100 | 5.25 barg | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N080 | Backordered | Backordered | $42.84/each | EA | 80 | Buna | 60-100 | 5.6 barg | 20.7 barg | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N085 | Backordered | Backordered | $42.84/each | EA | 85 | Buna | 60-100 | 5.95 barg | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N090 | Backordered | Backordered | $42.84/each | EA | 90 | Buna | 60-100 | 6.3 barg | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N095 | Backordered | Backordered | $42.84/each | EA | 95 | Buna | 60-100 | 6.65 barg | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N100 | Backordered | 11 in stock | $43.81/each | EA | 100 | Buna | 60-100 | 7 barg | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring | |
| RV01A1N100V | Backordered | 150 in stock | $60.35/each | EA | 100 | Viton | 60-100 | 7 barg | 300 psig | 1/4" | Aluminum | Knurled Knob | NPT | Steel Locking Nut and Spring |
