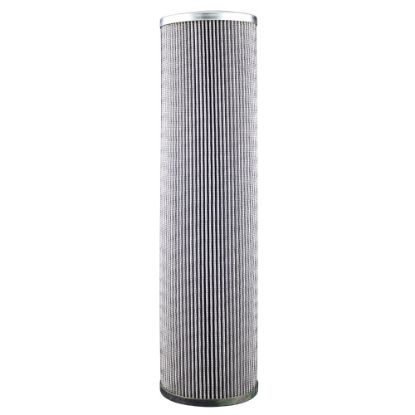

Replacement Elements - High Pressure Filter 100P Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 100P Series is a compact, cost effective, high pressure filter designed with the latest filtration technology.
Using the Parker 100P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
Read More...Using the Parker 100P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Seal Material | Filter Element | Length | Filter Housing Series | Location | Maximum Pressure Differential | Seal Material | Filter Element Type | For Fluid Type | Length | Collapse Pressure (psi) | Efficiency βx(C) ≥ 200 | Seals | Pkg Qty | Media | Collapse Pressure (bar) | Media Type | Media | Parker Group | B Dimension | Media Composition Detail | A Dimension | E Dimension | Series | Glue Side Seam Adhesive | Parker Division | Collapse Pressure (bar) | Collapse Pressure (psi) | Efficiency βx(C) ≥ 200 | Top Endcap Material | Bottom Endcap Material | Glue Endcaps Adhesive | Seals | Media Type | D Dimension | Inner Support Cylinder Material | Efficiency βx(C) ≥ 1000 | Efficiency βx(C) ≥ 1000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 939060Q | Backordered | Backordered | POR | EA | Nitrile | 02Q Microglass | single | 100P | EMEA and US | 20 bar (ISO 2941) | Nitrile | Conventional disposable element | ||||||||||||||||||||||||||||||||
| 939061Q | Backordered | 2 Limited Stock | $369.38/each | EA | Nitrile | 05Q Microglass | single | 100P | EMEA and US | 20 bar (ISO 2941) | Nitrile | Conventional disposable element | ||||||||||||||||||||||||||||||||
| 939062Q | Backordered | Backordered | $329.94/each | EA | Nitrile | 10Q Microglass | single | 100P | EMEA and US | 20 bar (ISO 2941) | Nitrile | Conventional disposable element | ||||||||||||||||||||||||||||||||
| 939063Q | Backordered | Backordered | POR | EA | Nitrile | 20Q Microglass | single | 100P | EMEA and US | 20 bar (ISO 2941) | Nitrile | Conventional disposable element | ||||||||||||||||||||||||||||||||
| 939064Q | Backordered | Backordered | POR | EA | Nitrile | 02Q Microglass | double | 100P-2 | EMEA and US | Nitrile | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Double | |||||||||||||||||||||||||||||||
| 939065Q | Backordered | Backordered | $537.81/each | EA | EA | Nitrile | 05Q Microglass | double | 100P-2 | EMEA and US | Nitrile | 05Q Microglass | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Double | 290 psi | 6 µ | NBR: Nitrile | 1 | 5 Micron Absolute | 20 bar | Microglass | 5 Micron Absolute | Filtration | 2.244 in (57 mm) | Multilayer fiberglass with epoxy coated mesh on both sides | 3.74 in (95 mm) | 24.606 in (625 mm) | ParFit | Epoxy | Hydraulic Filter | 20 bar | 290 psi | 6 µ | Mild steel zinc plated | Mild steel zinc plated | Epoxy | NBR: Nitrile | Microglass | 3.74 in (95 mm) | Mild steel zinc plated | ||||
| 939066Q | Backordered | 3 in stock | $464.75/each | EA | Nitrile | 10Q Microglass | double | 100P-2 | EMEA and US | Nitrile | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Double | |||||||||||||||||||||||||||||||
| 939067Q | Backordered | 13 in stock | $460.41/each | EA | Nitrile | 20Q Microglass | double | 100P-2 | EMEA and US | Nitrile | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Double | |||||||||||||||||||||||||||||||
| 939073Q | Backordered | Backordered | $572.69/each | EA | Fluorocarbon | 05Q Microglass | double | 100P-2 | US | Fluorocarbon | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Double | |||||||||||||||||||||||||||||||
| 939074Q | Backordered | Backordered | $515.32/each | EA | Fluorocarbon | 10Q Microglass | double | 100P-2 | US | Fluorocarbon | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Double | |||||||||||||||||||||||||||||||
| 940738Q | Backordered | Backordered | POR | EA | Nitrile | 10QX Microglass | single | 100P | US | Nitrile | ||||||||||||||||||||||||||||||||||
| 940741Q | Backordered | Backordered | POR | EA | EA | Nitrile | 02QX Microglass | double | 100P-2 | US | Nitrile | 02QX Microglass | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Double | 3000 psi | 4 µ | NBR: Nitrile | 1 | 2 Micron Absolute | 207 bar | Microglass | 2 Micron Absolute | Filtration | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | 3.5 in (88.9 mm) | 26.618 in (676.1 mm) | ParFit | Epoxy | Hydraulic Filter | 207 bar | 3000 psi | 4 µ | Steel | Steel | Epoxy | NBR: Nitrile | Microglass | Steel tin plated | 5 µ | 5 µ | ||||
| 940742Q | Backordered | 18 in stock | $1,312.22/each | EA | EA | Nitrile | 10QX Microglass | double | 100P-2 | US | Nitrile | 10QX Microglass | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Double | 3000 psi | 9 µ | NBR: Nitrile | 1 | 10 Micron Absolute | 207 bar | Microglass | 10 Micron Absolute | Filtration | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | 3.5 in (88.9 mm) | 26.618 in (676.1 mm) | ParFit | Epoxy | Hydraulic Filter | 207 bar | 3000 psi | 9 µ | Steel | Steel | Epoxy | NBR: Nitrile | Microglass | Steel tin plated | 12 µ | 12 µ | ||||
| 940744Q | Backordered | 1 Limited Stock | $1,094.30/each | EA | EA | Fluorocarbon | 10QX Microglass | double | 100P-2 | US | Fluorocarbon | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Double | 3000 psi | 9 µ | FKM: Fluorocarbon | 1 | 10 Micron Absolute | 207 bar | Microglass | 10 Micron Absolute | Filtration | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | 3.5 in (88.9 mm) | 26.618 in (676.1 mm) | ParFit | Epoxy | Hydraulic Filter | 207 bar | 3000 psi | 9 µ | Steel | Steel | Epoxy | FKM: Fluorocarbon | Microglass | Steel tin plated | 12 µ | 12 µ |
