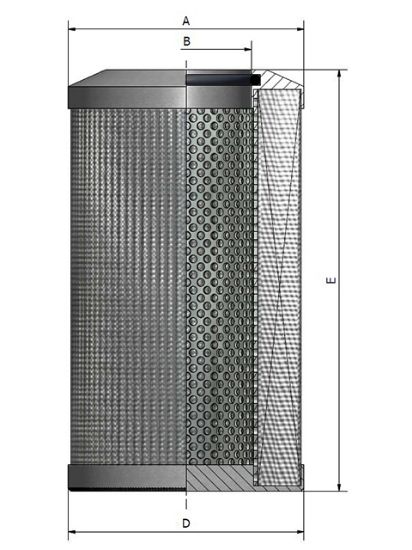

Picture of Replacement Elements - High Pressure Filter 100P Series - 940744Q

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Replacement Elements - High Pressure Filter 100P Series - 940744Q

The Parker high pressure 100P series replacement elements are engineered with the latest in Microglass technology. The element can be serviced with only removing the end of the bowl for applictions where space is premium.
Availability:
Backordered
SKU 940744Q
$1,094.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialFluorocarbon
LengthdoubleFilter Housing Series100P-2
Filter Element10QX MicroglassLocationUS
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsFilter Element TypeCartridge
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionProduct Series100P-2
Seal MaterialFluorocarbonLengthDouble
Efficiency βx(C) ≥ 2009 µEfficiency βx(C) ≥ 100012 µ
Pkg Qty1Media10 Micron Absolute
Collapse Pressure (bar)207 barSealsFKM: Fluorocarbon
UOMEAMedia TypeMicroglass
Collapse Pressure (psi)3000 psiMedia TypeMicroglass
Collapse Pressure (psi)3000 psiGlue Endcaps AdhesiveEpoxy
A Dimension3.5 in (88.9 mm)Glue Side Seam AdhesiveEpoxy
Parker DivisionHydraulic FilterSealsFKM: Fluorocarbon
Top Endcap MaterialSteelE Dimension26.618 in (676.1 mm)
Bottom Endcap MaterialSteelSeriesParFit
Media10 Micron AbsoluteCollapse Pressure (bar)207 bar
Inner Support Cylinder MaterialSteel tin platedEfficiency βx(C) ≥ 2009 µ
Efficiency βx(C) ≥ 100012 µMedia Composition DetailMultilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid
Parker GroupFiltration
