936601Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series

Name: 936601Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series
SKU: 936601Q
Price: 99.78 USD
Availability: LimitedAvailability

The Parker medium pressure CN series replacement elements are engineered with the latest in Microglass technology. CN Filters utilize a reusable core which remains in service through the life of the assembly.

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

132 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 936601Q

$99.78/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element	10Q Microglass
Seal Material	Fluorocarbon	Length	single
Filter Housing Series	40CN2	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type	Coreless	UOM	EA
Pkg Qty	1	Seals	FKM: Fluorocarbon
Efficiency βx(C) ≥ 200	9 µ	Efficiency βx(C) ≥ 1000	12 µ
Media	10 Micron Absolute	Media Type	Microglass
Collapse Pressure (bar)	10.3 bar	Collapse Pressure (psi)	150 psi
Parker Group	Filtration	Parker Division	Hydraulic Filter
Operating Temperature	-40F to 225F (-40C to 107C)	Element Length	Double
Filter Media Code	10QE	Series	ParFit
Seals	FKM: Fluorocarbon	Efficiency βx(C) ≥ 200	9 µ
Efficiency βx(C) ≥ 1000	12 µ	Media	10 Micron Absolute
Media Type	Microglass	Top Endcap Material	Glass reinforced nylon
Bottom Endcap Material	Glass reinforced nylon	Collapse Pressure (bar)	10.3 bar
Collapse Pressure (psi)	150 psi	Media Composition Detail	Multilayer fiberglass with PBT mesh on both sides
Glue Side Seam Adhesive	Polyurethane	Glue Endcaps Adhesive	Polyurethane

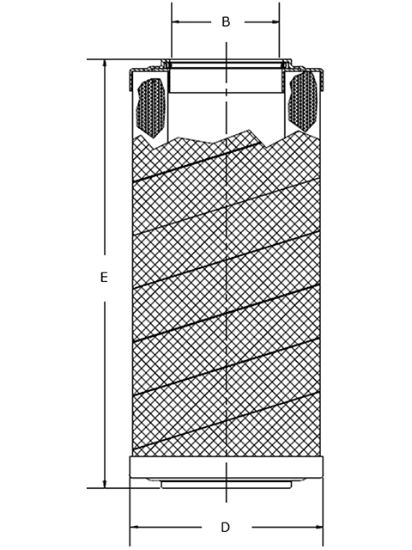

B Dimension	1.693 in (43 mm)	D Dimension	0.315 in (8 mm)
E Dimension	8.386 in (213 mm)
