Picture of Replacement Elements - Medium Pressure Filter IL8 Series - 928087Q

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Replacement Elements - Medium Pressure Filter IL8 Series - 928087Q

The Parker IL8 Coreless Medium Pressure Filter Series are engineered with the latest in Microglass technology. IL8 Filters utilize a reusable core which remains in service through the life of the assembly.
Availability:
Backordered
SKU 928087Q
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFilter Element10Q Microglass
Seal MaterialFluorocarbonLengthtriple
Filter Housing SeriesIL83For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
DivisionEngine Mobile Hydraulic and Fuel Filtration DivisionProduct StyleHydraulic Filter
Product TypeHydraulic Filter ElementFilter Element TypeCartridge with plated end cap
UOMEAPkg Qty1
SealsFKM: FluorocarbonEfficiency βx(C) ≥ 2009 µ
Efficiency βx(C) ≥ 100012 µMedia10 Micron Absolute
Media TypeMicroglassCollapse Pressure (bar)10.3 bar
Collapse Pressure (psi)150 psiParker GroupFiltration
Parker DivisionHydraulic FilterSeriesParFit
SealsFKM: FluorocarbonEfficiency βx(C) ≥ 2009 µ
Efficiency βx(C) ≥ 100012 µMedia Composition DetailMultilayer fiberglass with epoxy coated mesh on both sides
Inner Support Cylinder MaterialSteel tin platedGlue Side Seam AdhesiveEpoxy
Glue Endcaps AdhesiveEpoxyMedia10 Micron Absolute
Media TypeMicroglassTop Endcap MaterialSteel

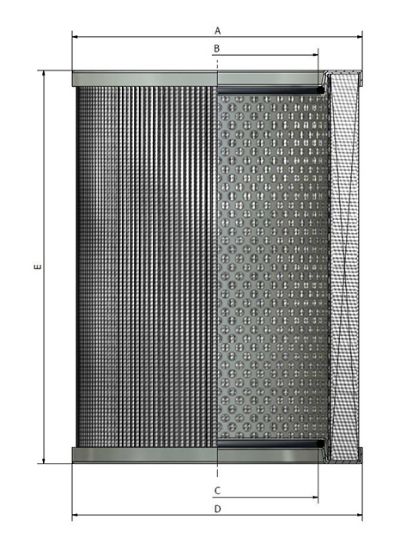

Bottom Endcap MaterialSteelB Dimension0.606 in (15.4 mm)
Collapse Pressure (bar)10.3 barCollapse Pressure (psi)150 psi
D Dimension5.949 in (151.1 mm)E Dimension38.65 in (981.7 mm)
A Dimension5.949 in (151.1 mm)
