Replacement Elements - Medium Pressure Filter IL8 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

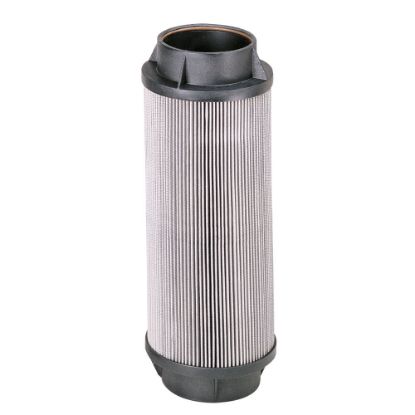

The Parker IL8 Series is a medium pressure filter designed with Microglass filtration technology. IL8 Series replacement elements feature coreless construction. The design reduces solid waste and minimizes disposal costs for industry.

Using Parker IL8 Series replacement elements guarantees Parker’s quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.

Available in Double and Triple lengths and several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Filter Element	Seal Material	Length	Filter Housing Series	For Fluid Type	Filter Element Type	Product Style	Pkg Qty	Seals	Efficiency βx(C) ≥ 200	Efficiency βx(C) ≥ 1000	Media	Media Type	Collapse Pressure (bar)	Collapse Pressure (psi)	Parker Group	Parker Division	Series	Seals	Efficiency βx(C) ≥ 200	Efficiency βx(C) ≥ 1000	Media Composition Detail	Inner Support Cylinder Material	Glue Side Seam Adhesive	Glue Endcaps Adhesive	Media	Media Type	Top Endcap Material	Bottom Endcap Material	B Dimension	D Dimension	E Dimension	Collapse Pressure (bar)	Collapse Pressure (psi)	Competitor	A Dimension	Seal Material	Length
927661Q	Backordered	Backordered	$177.16/each	EA	EA	10Q Microglass	Fluorocarbon	single	IL81	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Coreless	Hydraulic Filter	1	FKM: Fluorocarbon	9 µ	12 µ	10 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	9 µ	12 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	10 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.043 in (26.5 mm)	10.3 bar	150 psi	POROUS MEDIA
927663Q	Backordered	2 Limited Stock	$260.01/each	EA	EA	02Q Microglass	Fluorocarbon	single	IL81	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Coreless	Hydraulic Filter	1	FKM: Fluorocarbon	4 µ	5 µ	2 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	4 µ	5 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	2 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.043 in (26.5 mm)	10.3 bar	150 psi	POROUS MEDIA
927861Q	Backordered	Backordered	$223.96/each	EA	EA	05Q Microglass	Fluorocarbon	single	IL81	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Coreless	Hydraulic Filter	1	FKM: Fluorocarbon	5 µ	7 µ	5 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	5 µ	7 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	5 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.043 in (26.5 mm)	10.3 bar	150 psi	POROUS MEDIA
928087Q	Backordered	Backordered	POR	EA	EA	10Q Microglass	Fluorocarbon	triple	IL83	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge with plated end cap	Hydraulic Filter	1	FKM: Fluorocarbon	9 µ	12 µ	10 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	9 µ	12 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	10 Micron Absolute	Microglass	Steel	Steel	0.606 in (15.4 mm)	5.949 in (151.1 mm)	38.65 in (981.7 mm)	10.3 bar	150 psi		5.949 in (151.1 mm)
929099Q	Backordered	23 in stock	$214.39/each	EA	EA	20Q Microglass	Fluorocarbon	single	IL81	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Coreless	Hydraulic Filter	1	FKM: Fluorocarbon	15 µ	20 µ	20 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	15 µ	20 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	20 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.043 in (26.5 mm)	10.3 bar	150 psi	POROUS MEDIA
929103	Backordered	Backordered	POR	EA		WR Water Removal	Fluorocarbon	single	IL81	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Coreless	Hydraulic Filter
929109	Backordered	Backordered	POR	EA	EA	WR Water Removal		double	IL82	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Coreless	Hydraulic Filter	1	FKM: Fluorocarbon	33 µ			Par-Gel	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	33 µ		Absorbent Polymer & fiberglass with coated mesh on both sides	Steel tin plated	Epoxy	Epoxy		Par-Gel	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.85 in (47 mm)	10.3 bar	150 psi	EPPENSTEINER	6.098 in (154.9 mm)
932006	Backordered	Backordered	$782.35/each	EA	EA	WR Water Removal	Fluorocarbon	triple	IL83	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Coreless	Hydraulic Filter	1	FKM: Fluorocarbon	33 µ			Par-Gel	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	33 µ		Absorbent Polymer & fiberglass with coated mesh on both sides	Steel tin plated	Epoxy	Epoxy		Par-Gel	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	37.87 in (961.9 mm)	10.3 bar	150 psi	HILCO	6.098 in (154.9 mm)
932872Q	Backordered	26 in stock	$944.42/each	EA	EA	02Q Microglass	Fluorocarbon	triple	IL83	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter	1	FKM: Fluorocarbon	4 µ	5 µ	2 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	4 µ	5 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	2 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	37.87 in (961.9 mm)	10.3 bar	150 psi	POROUS MEDIA	6.098 in (154.9 mm)
932873Q	Backordered	7 in stock	$677.62/each	EA	EA	05Q Microglass	Fluorocarbon	triple	IL83	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter	1	FKM: Fluorocarbon	5 µ	7 µ	5 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	5 µ	7 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	5 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	37.87 in (961.9 mm)	10.3 bar	150 psi	POROUS MEDIA	6.098 in (154.9 mm)
932874Q	Backordered	55 in stock	$632.11/each	EA	EA	10Q Microglass	Fluorocarbon	triple	IL83	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter	1	FKM: Fluorocarbon	9 µ	12 µ	10 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	9 µ	12 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	10 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	37.87 in (961.9 mm)	10.3 bar	150 psi	POROUS MEDIA	6.098 in (154.9 mm)
932875Q	Backordered	6 in stock	$814.32/each	EA	EA	20Q Microglass	Fluorocarbon	triple	IL83	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter	1	FKM: Fluorocarbon	16 µ	20 µ	20 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	16 µ	20 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	20 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	37.87 in (961.9 mm)	10.3 bar	150 psi	POROUS MEDIA	6.098 in (154.9 mm)
933044Q	Backordered	15 in stock	$419.54/each	EA	EA	02Q Microglass	Fluorocarbon	double	IL82	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter	1	FKM: Fluorocarbon	4 µ	5 µ	2 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	4 µ	5 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	2 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.85 in (47 mm)	10.3 bar	150 psi	POROUS MEDIA	6.098 in (154.9 mm)
933045Q	Backordered	2 Limited Stock	$391.89/each	EA	EA	05Q Microglass	Fluorocarbon	double	IL82	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter	1	FKM: Fluorocarbon	5 µ	7 µ	5 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	5 µ	7 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	5 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.85 in (47 mm)	10.3 bar	150 psi	POROUS MEDIA	6.098 in (154.9 mm)
933046Q	Backordered	4 in stock	$372.55/each	EA	EA	10Q Microglass	Fluorocarbon	double	IL82	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter	1	FKM: Fluorocarbon	9 µ	12 µ	10 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	9 µ	12 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	10 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.85 in (47 mm)	10.3 bar	150 psi	POROUS MEDIA	6.098 in (154.9 mm)
933047Q	Backordered	31 in stock	$348.32/each	EA	EA	20Q Microglass	Fluorocarbon	double	IL82	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter	1	FKM: Fluorocarbon	16 µ	20 µ	20 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	16 µ	20 µ	Multilayer fiberglass with epoxy coated mesh on both sides	Steel tin plated	Epoxy	Epoxy	20 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.85 in (47 mm)	10.3 bar	150 psi	POROUS MEDIA	6.098 in (154.9 mm)
933352	Backordered	Backordered	$807.51/each	EA	EA	40W stainless steel mesh	Fluorocarbon	double	IL82	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Coreless	Hydraulic Filter	1	FKM: Fluorocarbon	40 (nominal) µ			Stainless steel mesh	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	40 (nominal) µ		Single layer stainless steel mesh	Steel tin plated	Weld	Epoxy	40 Micron Nominal	Stainless steel mesh	Glass reinforced nylon	Glass reinforced nylon	0.606 in (15.4 mm)	6.098 in (154.9 mm)	1.85 in (47 mm)	10.3 bar	150 psi		6.098 in (154.9 mm)
933357Q	Backordered	Backordered	$827.14/each	EA		05Q Microglass	Ethylene Propylene	triple	IL83	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter
933502Q	Backordered	Backordered	$805.20/each	EA		10Q Microglass	Ethylene Propylene	triple	IL83	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Cartridge	Hydraulic Filter
933612Q	Backordered	5 in stock	$641.77/each	EA	EA	05Q Microglass	Fluorocarbon	triple	IL83	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Coreless	Hydraulic Filter	1	FKM: Fluorocarbon	5 µ	7 µ	5 Micron Absolute	Microglass	10.3 bar	150 psi	Filtration	Hydraulic Filter	ParFit	FKM: Fluorocarbon	5 µ	7 µ	Multilayer fiberglass with PBT mesh on both sides		Polyurethane	Polyurethane	5 Micron Absolute	Microglass	Glass reinforced nylon	Glass reinforced nylon	3.783 in (96.1 mm)	6.079 in (154.4 mm)	37.142 in (943.4 mm)	10.3 bar	150 psi		6.079 in (154.4 mm)	Fluorocarbon	Triple
