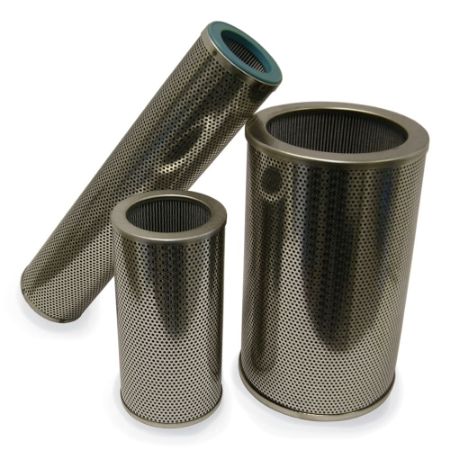

Replacement Elements - TTF Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The high quality replacement elements of the TTF filter series are available in a wide variety of sizes and with several filter materials and micron ratings.
These replacement elements ensure the quality of filtration Parker is known for.

Fluid passes through the elements in an inside-to-outside direction, collecting particles inside the filter cartridge. This eliminates reinjection of contaminant during element change. Clean fluid then returns to the reservoir.

The TTF series filters are available with Magnetic pre-filtration. The magnet column removes ferrous particles, even during times of bypass, and extends the life of the filter element.

Using genuine Parker replacement elements guarantees Parker's quality of filtration. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Seal Material	Filter Element	Micron Rating	Length	Filter Housing Series	Efficiency βx(C) ≥ 200	Pkg Qty	Seals	Collapse Pressure (psi)	Media Type	Collapse Pressure (bar)	Glue Side Seam Adhesive	Parker Division	Series	Collapse Pressure (psi)	Media Composition Detail	Media Type	E Dimension	Efficiency βx(C) ≥ 200	Collapse Pressure (bar)	Top Endcap Material	B Dimension	D Dimension	Glue Endcaps Adhesive	Bottom Endcap Material	Media	Seals	A Dimension	Competitor	Inner Support Cylinder Material	Parker Group	Efficiency βx(C) ≥ 1000	Media	Efficiency βx(C) ≥ 1000	Filter Element Type	Maximum Pressure Differential	Seal Material
937722	Backordered	Backordered	POR	EA		Nitrile	10Q Cellulose	10 µm	149 mm	TTF3 (1-90)
937723	Backordered	Backordered	POR	EA		Nitrile	10Q Cellulose	10 µm	199 mm	TTF4 (1-120)
937726	Backordered	2 Limited Stock	$121.34/each	EA	EA	Nitrile	10Q Cellulose	10 µm	259 mm	TTF7 (2-230)	10 (nominal) µ	1	NBR: Nitrile	150 psi	Cellulose (Paper)	10.3 bar	Epoxy	Hydraulic Filter	ParFit	150 psi	Single layer cellulose (paper)	Cellulose (Paper)	10.22 in (259.6 mm)	10 (nominal) µ	10.3 bar	Steel tin plated	2.839 in (72.1 mm)	0.626 in (15.9 mm)	Epoxy	Steel tin plated	10 Micron Nominal	NBR: Nitrile	0.626 in (15.9 mm)	FILTREC	Steel tin plated	Filtration
937727	Backordered	Backordered	POR	EA	EA	Nitrile	10Q Cellulose	10 µm	464 mm	TTF8 (2-300)	10 (nominal) µ	1	NBR: Nitrile	150 psi	Cellulose (Paper)	10.3 bar	Epoxy	Hydraulic Filter	ParFit	150 psi	Single layer cellulose (paper)	Cellulose (Paper)	18.291 in (464.6 mm)	10 (nominal) µ	10.3 bar	Steel tin plated	2.839 in (72.1 mm)	0.626 in (15.9 mm)	Epoxy	Steel tin plated	10 Micron Nominal	NBR: Nitrile	0.626 in (15.9 mm)	FILTREC	Steel tin plated	Filtration
937745Q	Backordered	4 in stock	$229.30/each	EA		Nitrile	02Q Microglass	2 µm	464 mm	TTF8 (2-300)
937746Q	Backordered	Backordered	$182.58/each	EA	EA	Nitrile	02Q Microglass	2 µm	259 mm	TTF7 (2-230)	4 µ	1	NBR: Nitrile	150 psi	Microglass	10.3 bar	Epoxy	Hydraulic Filter	ParFit	150 psi	Multilayer fiberglass with epoxy coated mesh on both sides	Microglass	10.22 in (259.6 mm)	4 µ	10.3 bar	Steel tin plated	2.839 in (72.1 mm)	0.626 in (15.9 mm)	Epoxy	Steel tin plated	2 Micron Absolute	NBR: Nitrile	0.626 in (15.9 mm)	FINN FILTER	Steel tin plated	Filtration	5 µ	2 Micron Absolute	5 µ
937747Q	Backordered	Backordered	$170.99/each	EA		Nitrile	02Q Microglass	2 µm	189 mm	TTF6 (2-170)
937749Q	Backordered	14 in stock	$129.38/each	EA		Nitrile	02Q Microglass	2 µm	199 mm	TTF4 (1-120)
937750Q	Backordered	16 in stock	$114.61/each	EA		Nitrile	02Q Microglass	2 µm	149 mm	TTF3 (1-90)
937751Q	Backordered	Backordered	POR	EA	EA	Nitrile	02Q Microglass	2 µm	105 mm	TTF2 (1-60)	4 µ	1	NBR: Nitrile	150 psi	Microglass	10.3 bar	Epoxy	Hydraulic Filter	ParFit	150 psi	Multilayer fiberglass with epoxy coated mesh on both sides	Microglass	0.606 in (15.4 mm)	4 µ	10.3 bar	Steel tin plated	1.772 in (45 mm)	2.839 in (72.1 mm)	Epoxy	Steel tin plated	2 Micron Absolute	NBR: Nitrile	2.839 in (72.1 mm)	FINN FILTER	Steel tin plated	Filtration	5 µ	2 Micron Absolute	5 µ
937754Q	Backordered	Backordered	$127.51/each	EA		Nitrile	05Q Microglass	5 µm	105 mm	TTF2 (1-60)
937755Q	Backordered	Backordered	POR	EA		Nitrile	05Q Microglass	5 µm	149 mm	TTF3 (1-90)
937756Q	Backordered	Backordered	POR	EA		Nitrile	05Q Microglass	5 µm	199 mm	TTF4 (1-120)
937758Q	Backordered	Backordered	POR	EA		Nitrile	05Q Microglass	5 µm	189 mm	TTF6 (2-170)
937759Q	Backordered	Backordered	$167.92/each	EA		Nitrile	05Q Microglass	5 µm	259 mm	TTF7 (2-230)
937760Q	Backordered	Backordered	POR	EA		Nitrile	05Q Microglass	5 µm	464 mm	TTF8 (2-300)
937781Q	Backordered	25 in stock	$173.49/each	EA	EA	Nitrile	10Q Microglass	10 µm	464 mm	TTF8 (2-300)	9 µ	1	NBR: Nitrile	150 psi	Microglass	10.3 bar	Epoxy	Hydraulic Filter	ParFit	150 psi	Multilayer fiberglass with epoxy coated mesh on both sides	Microglass	18.291 in (464.6 mm)	9 µ	10.3 bar	Steel tin plated	2.839 in (72.1 mm)	0.626 in (15.9 mm)	Epoxy	Steel tin plated	10 Micron Absolute	NBR: Nitrile	0.626 in (15.9 mm)	JCB (J.C. BAMFORD)	Steel tin plated	Filtration	12 µ	10 Micron Absolute	12 µ	Conventional disposable element	10 bar (ISO 2941)
937782Q	Backordered	4 in stock	$131.92/each	EA		Nitrile	10Q Microglass	10 µm	259 mm	TTF7 (2-230)																														Conventional disposable element	10 bar (ISO 2941)	Nitrile
937783Q	Backordered	35 in stock	$122.60/each	EA	EA	Nitrile	10Q Microglass	10 µm	189 mm	TTF6 (2-170)	9 µ	1	NBR: Nitrile	150 psi	Microglass	10.3 bar	Epoxy	Hydraulic Filter	ParFit	150 psi	Multilayer fiberglass with epoxy coated mesh on both sides	Microglass	7.461 in (189.5 mm)	9 µ	10.3 bar	Steel tin plated	2.839 in (72.1 mm)	0.626 in (15.9 mm)	Epoxy	Steel tin plated	10 Micron Absolute	NBR: Nitrile	0.626 in (15.9 mm)	FINN FILTER	Steel tin plated	Filtration	12 µ	10 Micron Absolute	12 µ	Conventional disposable element	10 bar (ISO 2941)
937784Q	Backordered	Backordered	$119.25/each	EA	EA	Nitrile	10Q Microglass	10 µm	299 mm	TTF5 (1-125)	9 µ	1	NBR: Nitrile	150 psi	Microglass	10.3 bar	Epoxy	Hydraulic Filter	ParFit	150 psi	Multilayer fiberglass with epoxy coated mesh on both sides	Microglass	11.799 in (299.7 mm)	9 µ	10.3 bar	Steel tin plated	1.772 in (45 mm)	2.839 in (72.1 mm)	Epoxy	Steel tin plated	10 Micron Absolute	NBR: Nitrile	2.839 in (72.1 mm)		Steel tin plated	Filtration	12 µ	10 Micron Absolute	12 µ	Conventional disposable element	10 bar (ISO 2941)
