Replacement Legacy Elements - Low Pressure 1.5" CF/RF Elements
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

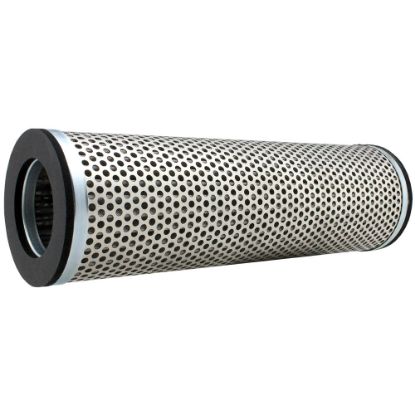

The Parker CF/RF-1.5 Series suction and return line filters are designed with the latest filtration technology.
Using the Parker CF/RF-1.5 Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available with Buna or Viton seals, highly efficient replacement elements are available with several media configurations and micron ratings (3, 10, 20, 25W, 40SA, 40W, 74W and 149W). These genuine replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
Read More...Using the Parker CF/RF-1.5 Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available with Buna or Viton seals, highly efficient replacement elements are available with several media configurations and micron ratings (3, 10, 20, 25W, 40SA, 40W, 74W and 149W). These genuine replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.

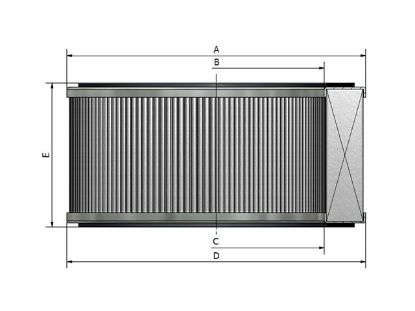

| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Seal Material | Filter Element Type | Micron Rating | For Fluid Type | Length | Compatible Series | Pkg Qty | Seals | Efficiency βx(C) ≥ 200 | Media Type | Parker Group | Parker Division | Series | Glue Side Seam Adhesive | Glue Endcaps Adhesive | Seals | B Dimension | D Dimension | Top Endcap Material | Bottom Endcap Material | Inner Support Cylinder Material | Media | A Dimension | C Dimension | E Dimension | Efficiency βx(C) ≥ 200 | Media Composition Detail | Media Type | Competitor | Outer Support Cylinder Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 924730 | Backordered | 3 in stock | $172.31/each | EA | EA | Nitrile | Cartridge | 40SA Synthetic | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | 1 | Paper | 40 (nominal) µ | Synthetic (Polyester) | Filtration | Hydraulic Filter | ParFit | Epoxy | Epoxy | Paper | 1.669 in (42.4 mm) | 2.752 in (69.9 mm) | Steel | Steel | Steel | 40 Micron Nominal | 2.752 in (69.9 mm) | 1.669 in (42.4 mm) | 0.886 in (22.5 mm) | 40 (nominal) µ | Single layer synthetic (polyester) | Synthetic (Polyester) | |||
| 924731 | Backordered | Backordered | $261.94/each | EA | Nitrile | Cartridge | 05Q Microglass | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | ||||||||||||||||||||||||||
| 924732 | Backordered | Backordered | $248.02/each | EA | Nitrile | Cartridge | 10Q Microglass | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | ||||||||||||||||||||||||||
| 924734 | Backordered | 15 in stock | $155.60/each | EA | EA | Nitrile | Cartridge | 10C Cellulose | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | 1 | Paper | 10 (nominal) µ | Cellulose (Paper) | Filtration | Hydraulic Filter | ParFit | Epoxy | Epoxy | Paper | 1.669 in (42.4 mm) | 2.752 in (69.9 mm) | Steel | Steel | Steel | 10 Micron Nominal | 2.752 in (69.9 mm) | 1.669 in (42.4 mm) | 0.886 in (22.5 mm) | 10 (nominal) µ | Single layer cellulose (paper) | Cellulose (Paper) | |||
| 924735 | Backordered | 10 in stock | $115.37/each | EA | Nitrile | Cartridge | 20C Cellulose | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | ||||||||||||||||||||||||||
| 924737 | Backordered | Backordered | $236.29/each | EA | Nitrile | Cartridge | 149W Wiremesh | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | ||||||||||||||||||||||||||
| 924738 | Backordered | 2 Limited Stock | $269.36/each | EA | EA | Nitrile | Cartridge - Inner Core | 74W Wiremesh | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | 1 | NBR: Nitrile | Stainless steel mesh | Filtration | Hydraulic Filter | ParFit | Weld | Epoxy | NBR: Nitrile | 2.752 in (69.9 mm) | Steel | Steel | Steel zinc plated | 74 Micron Nominal | 1.669 in (42.4 mm) | 0.886 in (22.5 mm) | Single layer stainless steel mesh | Stainless steel mesh | |||||||
| 924739 | Backordered | Backordered | $238.60/each | EA | EA | Nitrile | Cartridge - Outer Core | 74W Wiremesh | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | 1 | NBR: Nitrile | Stainless steel mesh | Filtration | Hydraulic Filter | ParFit | Weld | Epoxy | NBR: Nitrile | 2.752 in (69.9 mm) | Steel | Steel | Steel zinc plated | 74 Micron Nominal | 1.669 in (42.4 mm) | 0.886 in (22.5 mm) | Single layer stainless steel mesh | Stainless steel mesh | HY-PRO | ||||||
| 924740 | Backordered | Backordered | $306.02/each | EA | Nitrile | Cartridge | 40W Wiremesh | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | ||||||||||||||||||||||||||
| 924742 | Backordered | Backordered | $426.45/each | EA | Nitrile | Cartridge | 25W Wiremesh | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | ||||||||||||||||||||||||||
| 925210 | Backordered | Backordered | POR | EA | Fluorocarbon | Cartridge | 40SA Synthetic | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | ||||||||||||||||||||||||||
| 925214 | Backordered | Backordered | $208.38/each | EA | EA | Fluorocarbon | Cartridge | 10C Cellulose | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | 1 | FKM: Fluorocarbon | 10 (nominal) µ | Cellulose (Paper) | Filtration | Hydraulic Filter | ParFit | Epoxy | Epoxy | FKM: Fluorocarbon | 2.752 in (69.9 mm) | Steel | Steel | Steel zinc plated | 10 Micron Nominal | 1.669 in (42.4 mm) | 0.886 in (22.5 mm) | 10 (nominal) µ | Single layer cellulose (paper) | Cellulose (Paper) | Steel zinc plated | ||||
| 925219 | Backordered | 2 Limited Stock | $415.54/each | EA | EA | Fluorocarbon | Cartridge - Outer Core | 74W Wiremesh | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Single | CF1.5/RF1.5 | 1 | FKM: Fluorocarbon | Stainless steel mesh | Filtration | Hydraulic Filter | ParFit | Weld | Epoxy | FKM: Fluorocarbon | 2.752 in (69.9 mm) | Steel | Steel | 74 Micron Nominal | 1.669 in (42.4 mm) | 0.886 in (22.5 mm) | Single layer stainless steel mesh | Stainless steel mesh | Steel zinc plated |
