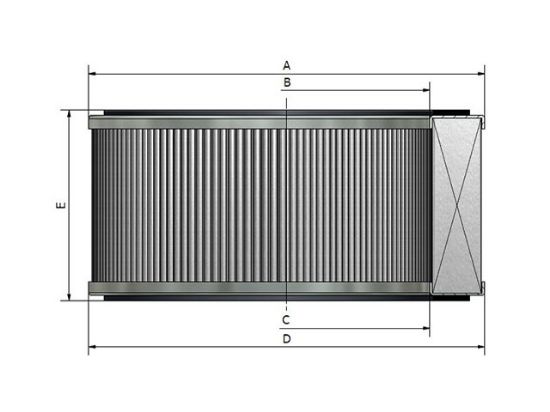

924738 - Replacement Legacy Elements - Low Pressure 1.5" CF/RF Elements

Parker CF/RF-1.5 series replacement elements are engineered with the latest in Microglass technology. The CF/RF-1.5 filters are for suction and return lines and incorporate many advanced features designed for one reason: to improve your bottom line.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	2 Limited Stock

SKU 924738

$269.36/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Micron Rating	74W Wiremesh	Filter Element Type	Cartridge - Inner Core
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Length	Single
Compatible Series	CF1.5/RF1.5	UOM	EA
Pkg Qty	1	Seals	NBR: Nitrile
Media Type	Stainless steel mesh	Parker Group	Filtration
Parker Division	Hydraulic Filter	Series	ParFit
Seals	NBR: Nitrile	Glue Endcaps Adhesive	Epoxy
D Dimension	2.752 in (69.9 mm)	Media Composition Detail	Single layer stainless steel mesh
Top Endcap Material	Steel	Bottom Endcap Material	Steel
Glue Side Seam Adhesive	Weld	Media	74 Micron Nominal
Media Type	Stainless steel mesh	C Dimension	1.669 in (42.4 mm)
E Dimension	0.886 in (22.5 mm)	Inner Support Cylinder Material	Steel zinc plated
